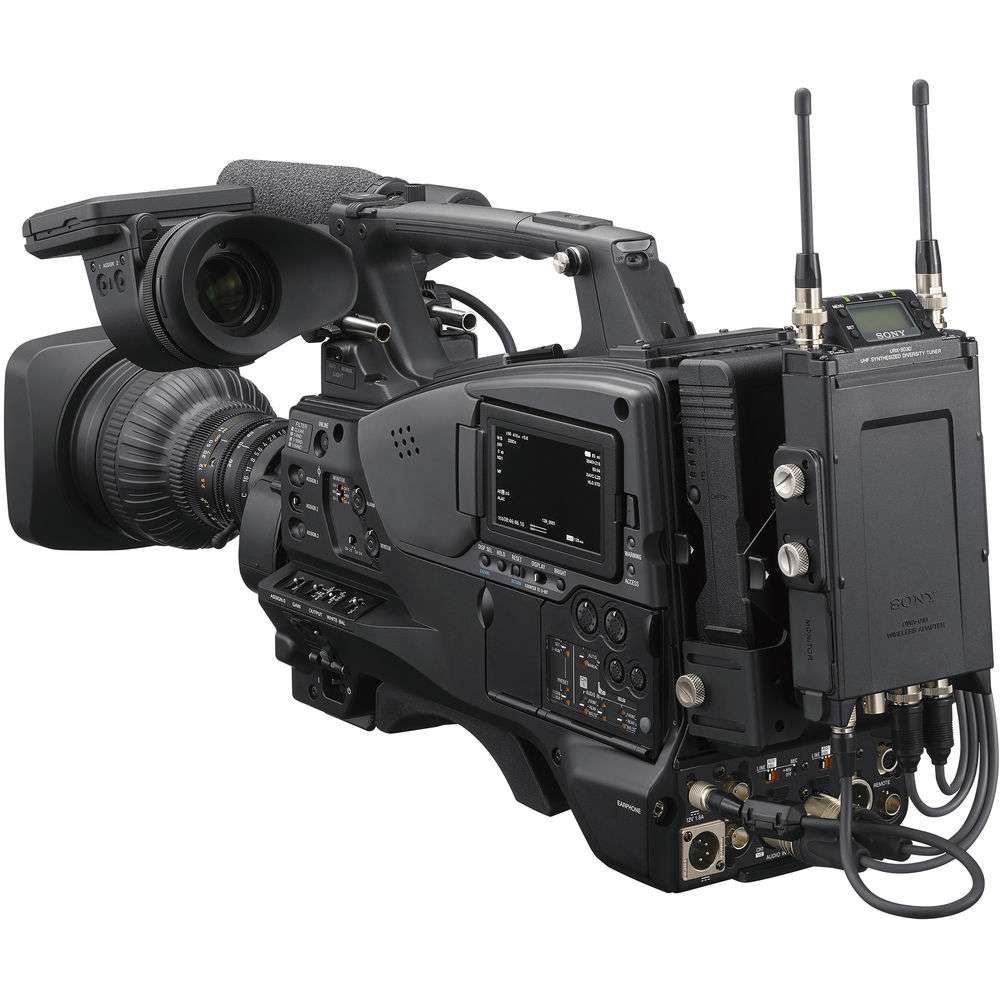

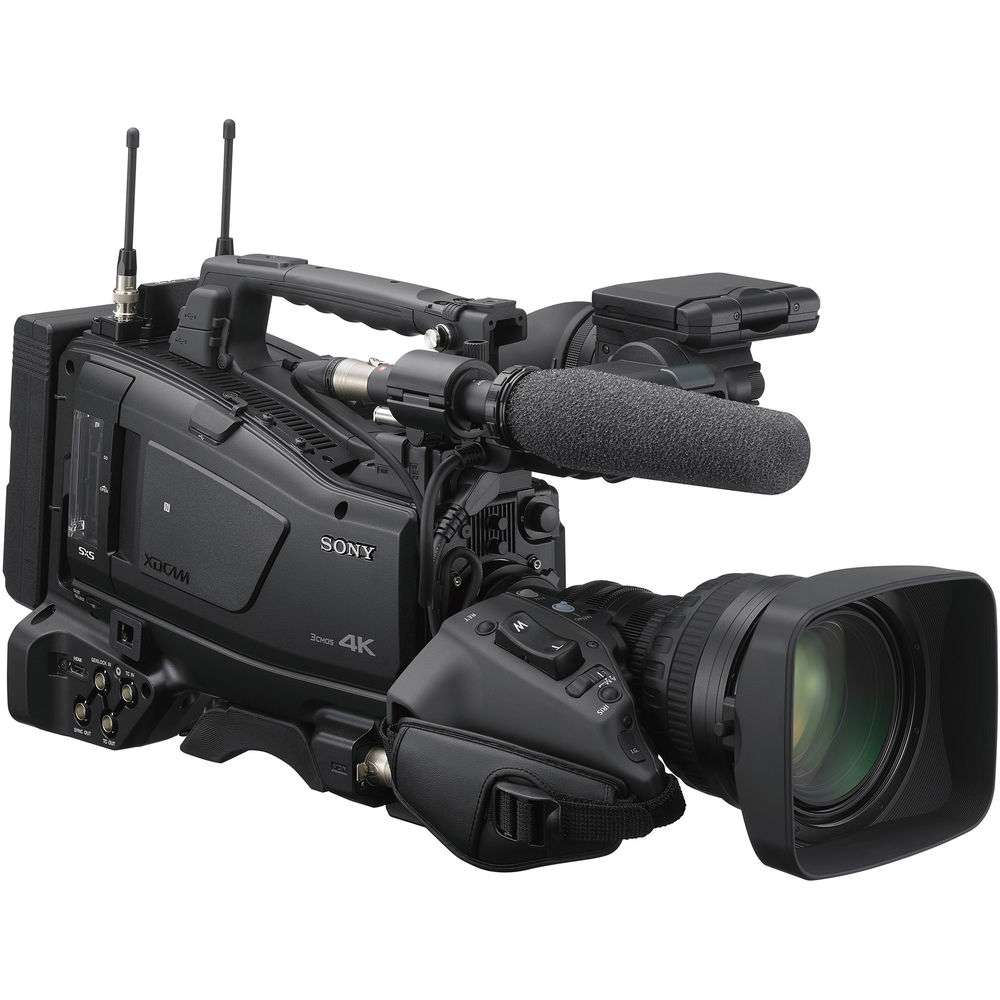

Sony PXW-Z750 4K Shoulder-Mount Broadcast Camcorder

Battery Type

V-Mount

Power Input & Output

1x Hirose 4-Pin (11 to 17VDC up to 1.8 A) Output1x Light 2-Pin Output1x XLR 4-Pin (11 to 17VDC) Input

Other Input & Output

1x RJ45 (LAN) 1x 20-Pin Viewfinder 1x 50-Pin 1x Hirose 8-Pin Control 1x Lens 12-Pin Control 2x USB-A 1x USB-B 1x RJ45 (LAN) 1x BNC (Timecode) Input1x BNC (Genlock) Input1x DE-15/DB-15 (Wireless Receiver) Input

Wireless Control

2.4 GHz Wi-Fi 4 (802.11n), NFC Video Output, Audio Output, Control

Dimensions

5.91 x 10.59 x 13.07" / 15.01 x 26.9 x 33.2 cm

Weight

8.38 lb / 3.8 kg (body only)
