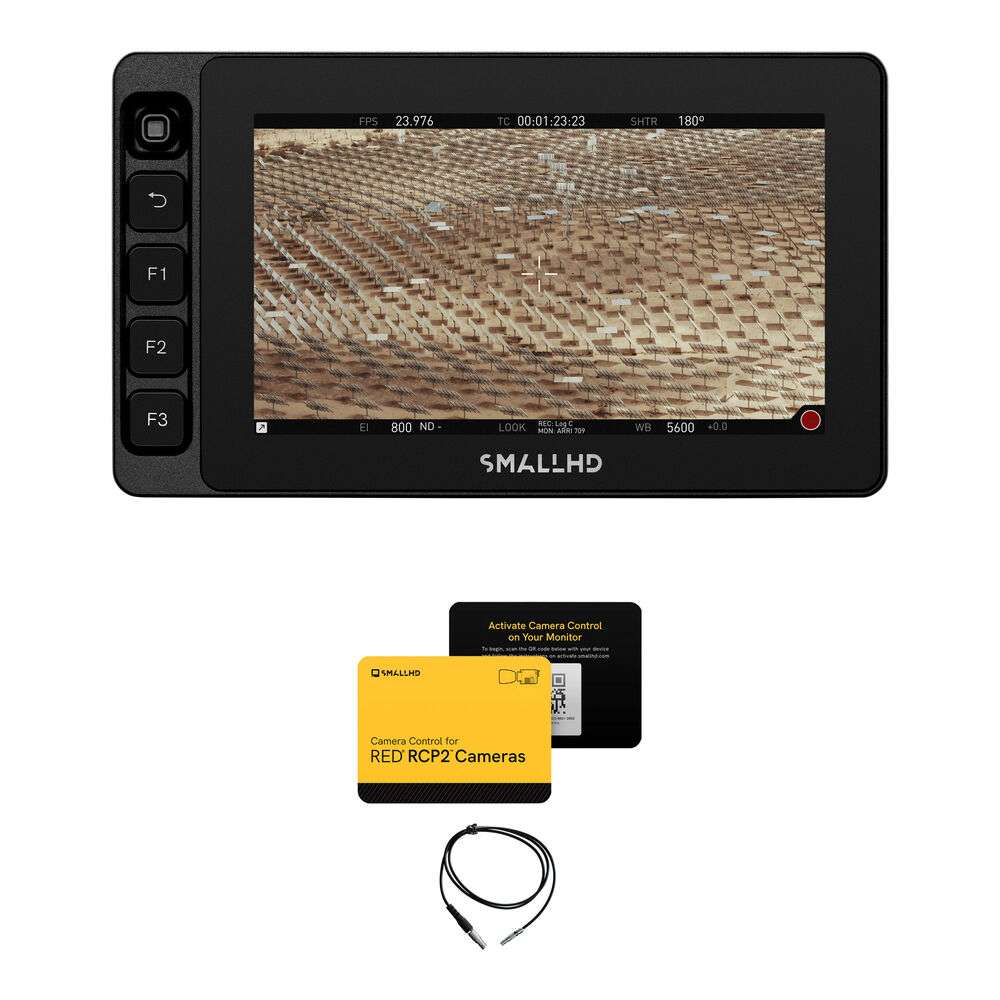

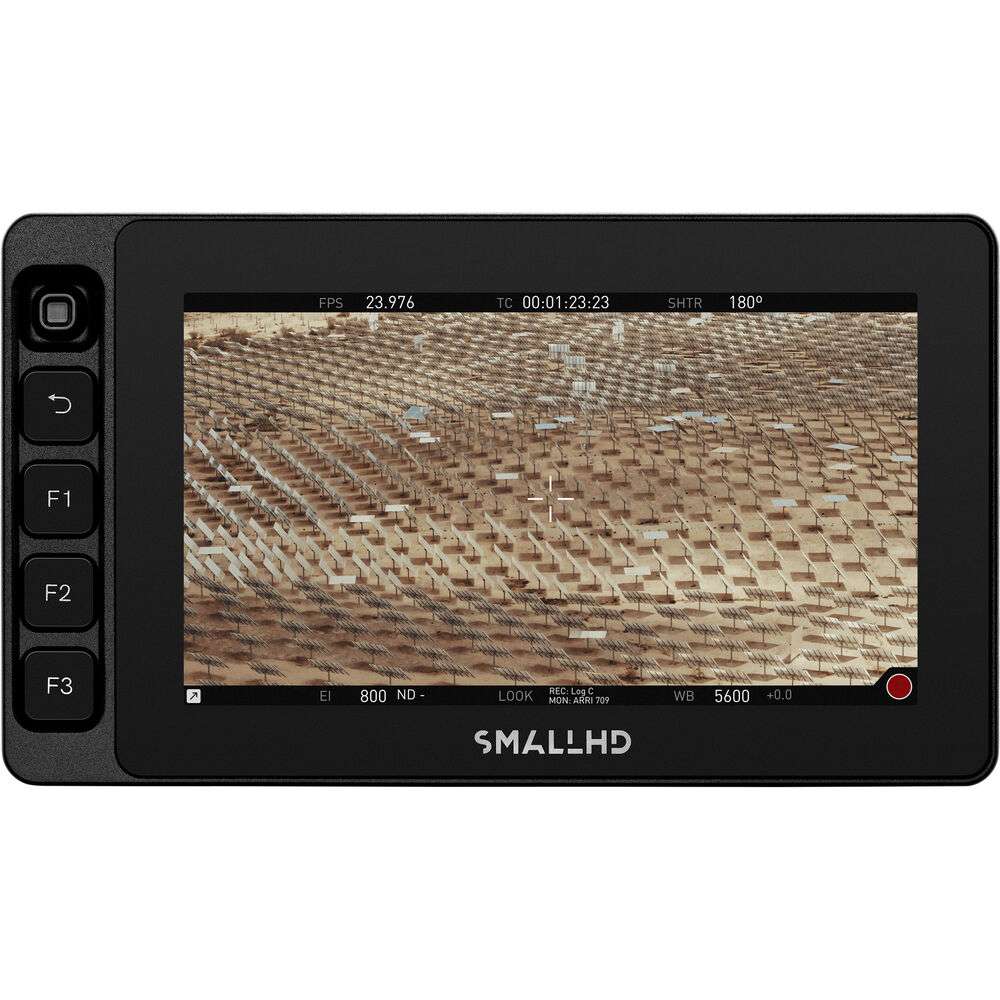

SmallHD ULTRA 5 Monitor with Control Kit for RED KOMODO

Pixels Per Inch

443 ppi

Image Control

Blue Only, False Color, Focus Peaking, Image Flip, Pixel-to-Pixel Zoom, RGB Parade, Screen Markers, Waveform

Audio Input & Output

1x 1/8" / 3.5 mm Headphone Output

Embedded Audio

HDMI
SDI

Video Format

SDI (10-Bit 4:2:2)
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50/30/29.97/25/24/23.98
480i
576i
HDMI (8/10/12-Bit)
UHD 4K: 30
1080p: 60/59.94/50/30/25/24/23.98
1080PsF: 30/25/24/23.98
1080i: 60/59.94/50
720p: 120/119.88/100/60/59.94/50/30/25/24/23.98
576p: 100/50
480p: 120/119.88/60/59.94
480i: 240/239.76/120/119.88/60/59.94
576i: 200/100/50

Mount

6x 1/4"-20 Female

Battery Type

No

Power Input & Output

1x LEMO 0B 2-Pin (2.1 A / 34 VDC) Input

Other Input & Output

1x LEMO 5-Pin Output
1x RJ45 Output

Wi-Fi Compatibility

No

Bluetooth Compatibility

No

Material

Aluminum

Input Power

10 to 34 VDC at 2.1 A

Dimensions

5.9 x 3.4 x 1.3" / 150 x 86 x 34 mm

Weight

1.1 lb / 504 g
