Pixels Per Inch

322 ppi

Image Control

Anamorphic De-Squeeze, False Color, Focus Peaking, Histogram, Pixel-to-Pixel Zoom, RGB Parade, Vectorscope, Waveform, Zebra

Audio Input & Output

1x 1/8" / 3.5 mm Headphone Output

Embedded Audio

HDMI: 8-Channel
SDI: 8-Channel

Video Format

HDMI (8/10/12/16-Bit 4:4:4/4:2:2 YCC)
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 120/119.88/100/60/59.94/50
720p: 120/119.88/100/60/59.94/50/30/29.97/25/24/23.98
576p: 200/100/50
480p: 240/239.76/120/119.88/100/60/59.94
480i: 240/239.76/120/119.88/100/60/59.94
576i: 200/100/50
SDI (10-Bit 4:2:2 YCC)
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080i: 120/119.88/100/60/59.94/50
720p: 60/59.94/50/30/29.97/25/24/23.98
576i: 50
480i: 59.94

Mount

4x 1/4"-20 Female

Media Slot

No

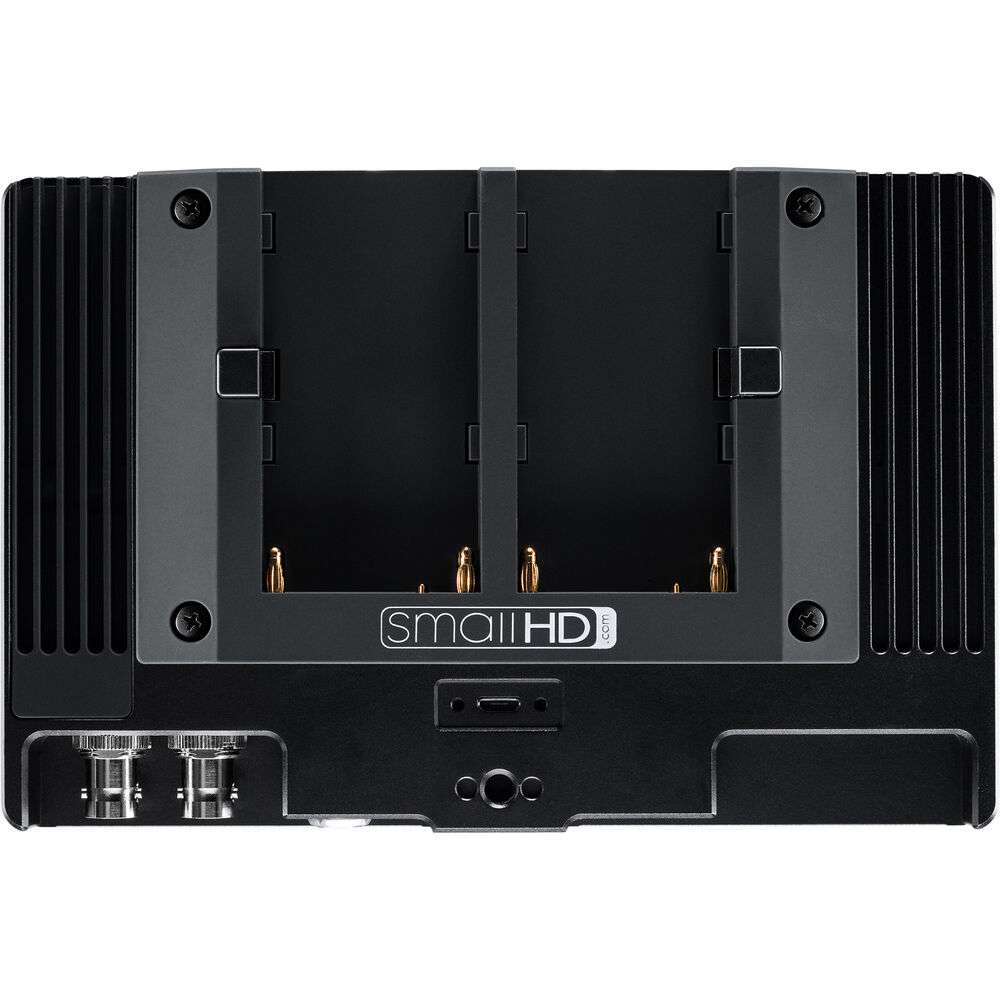

Battery Type

1x L-Series
Built-In

Power Input & Output

1x LEMO 2-Pin (34 VDC) Input

Other Input & Output

1x Micro-USB 2.0

Wi-Fi Compatibility

No

Bluetooth Compatibility

Yes

Input Power

6 - 16 VDC at 2.5 A

Dimensions

7.1 x 4.7 x 1.3" / 18 x 11.9 x 3.3 cm

Weight

20.00 oz / 567.00 g
