SmallHD Cine 7 Touchscreen On-Camera Monitor (L-Series, B-Stock)

Name: SmallHD Cine 7 Touchscreen On-Camera Monitor (L-Series, B-Stock)
Brand: SmallHD
SKU: MON-CINE-7/RF

#MON-CINE-7/RF • Used in 3 rigs

Shop SmallHD

SmallHD Cine 7 Touchscreen On-Camera Monitor (L-Series, B-Stock)

#MON-CINE-7/RF • Used in 3 rigs

Prices

Check

Buy

As of 2024-11-16 15:59 UTC -

Specs

Brightness

1800 nits

Native Resolution

1920 x 1200

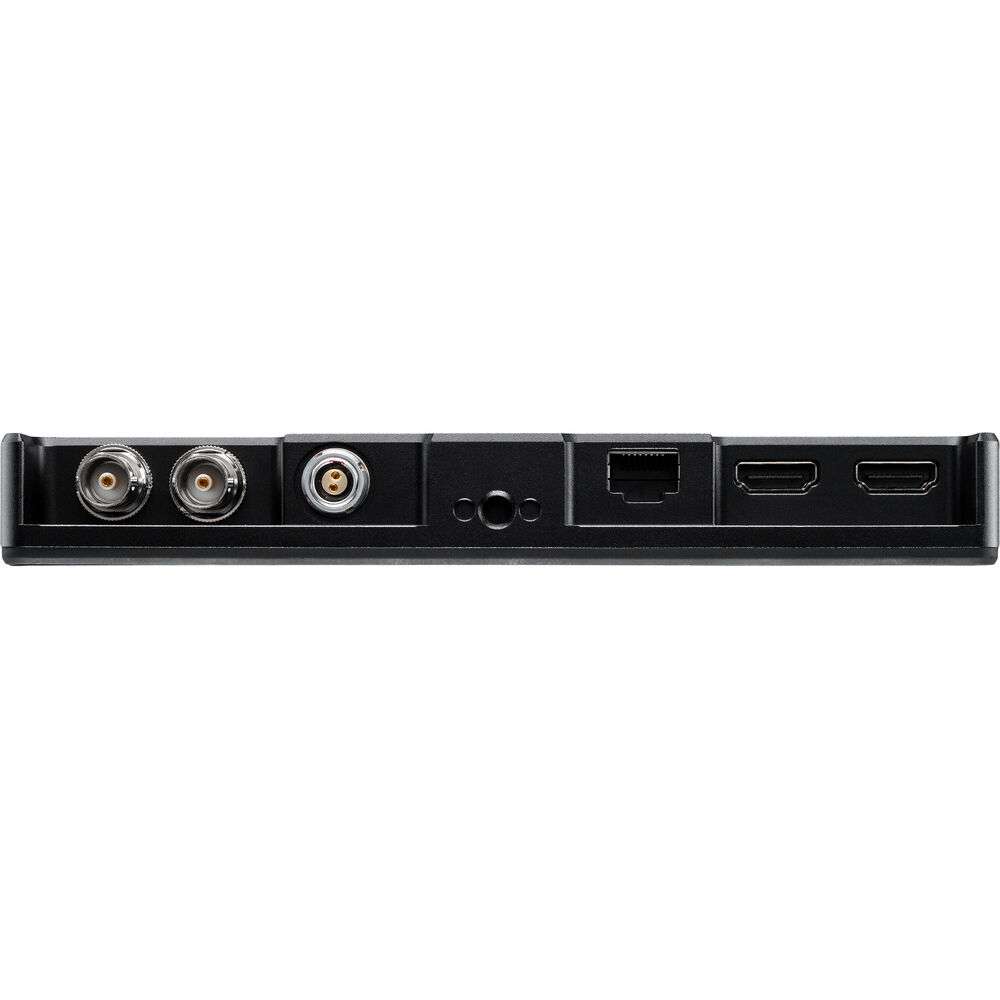

Video Input & Output

1x HDMI Input
1x HDMI Output
1x BNC (3G-SDI) Input
1x BNC (3G-SDI) Input/Output

Display Type

IPS-Type LCD

Display Size

7.0" / 17.8 cm

Aspect Ratio

16:10

Touchscreen

Yes

HDR Support

Pixels Per Inch

322 ppi

Image Control

Anamorphic De-Squeeze, False Color, Focus Peaking, Histogram, Pixel-to-Pixel Zoom, RGB Parade, Vectorscope, Waveform, Zebra

Audio Input & Output

1x 1/8" / 3.5 mm Headphone Output

Embedded Audio

HDMI: 8-Channel
SDI: 8-Channel

Video Format

HDMI (8/10/12/16-Bit 4:4:4/4:2:2 YCC)
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 120/119.88/100/60/59.94/50
720p: 120/119.88/100/60/59.94/50/30/29.97/25/24/23.98
576p: 200/100/50
480p: 240/239.76/120/119.88/100/60/59.94
480i: 240/239.76/120/119.88/100/60/59.94
576i: 200/100/50
SDI (10-Bit 4:2:2 YCC)
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080i: 120/119.88/100/60/59.94/50
720p: 60/59.94/50/30/29.97/25/24/23.98
576i: 50
480i: 59.94
