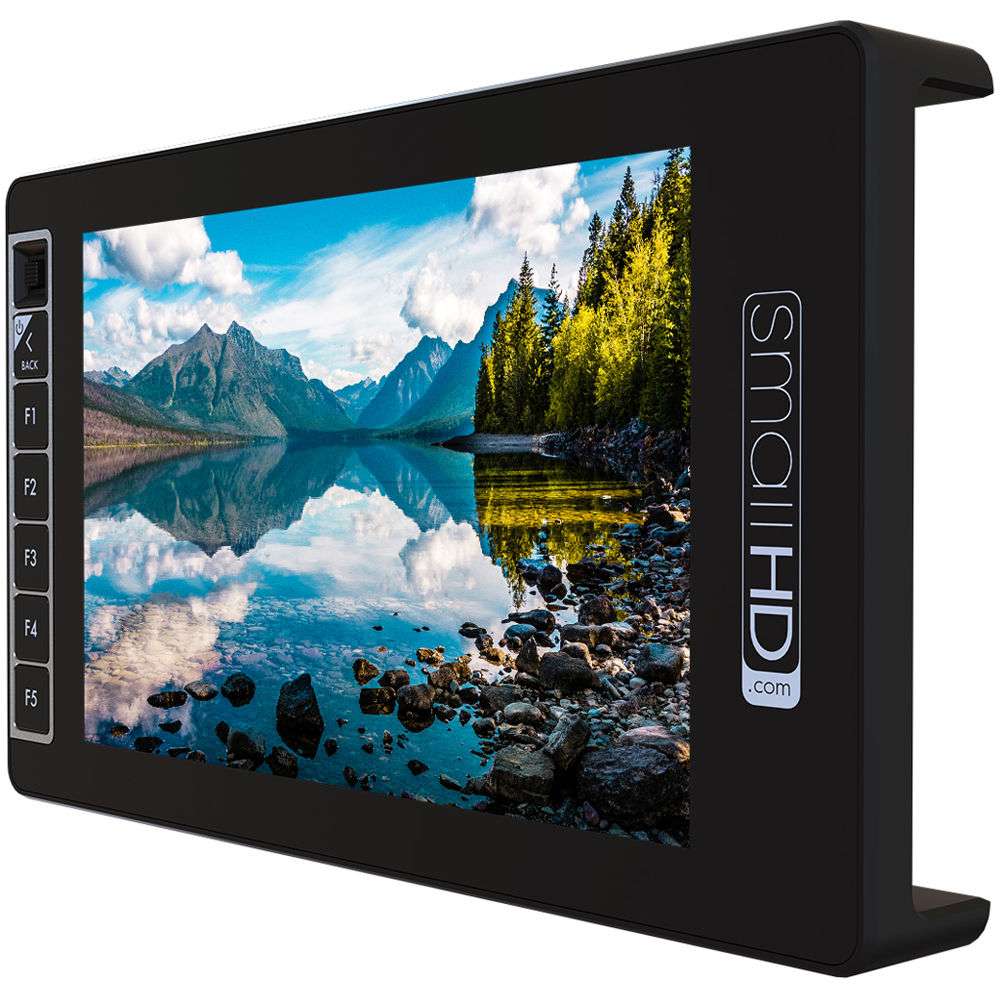

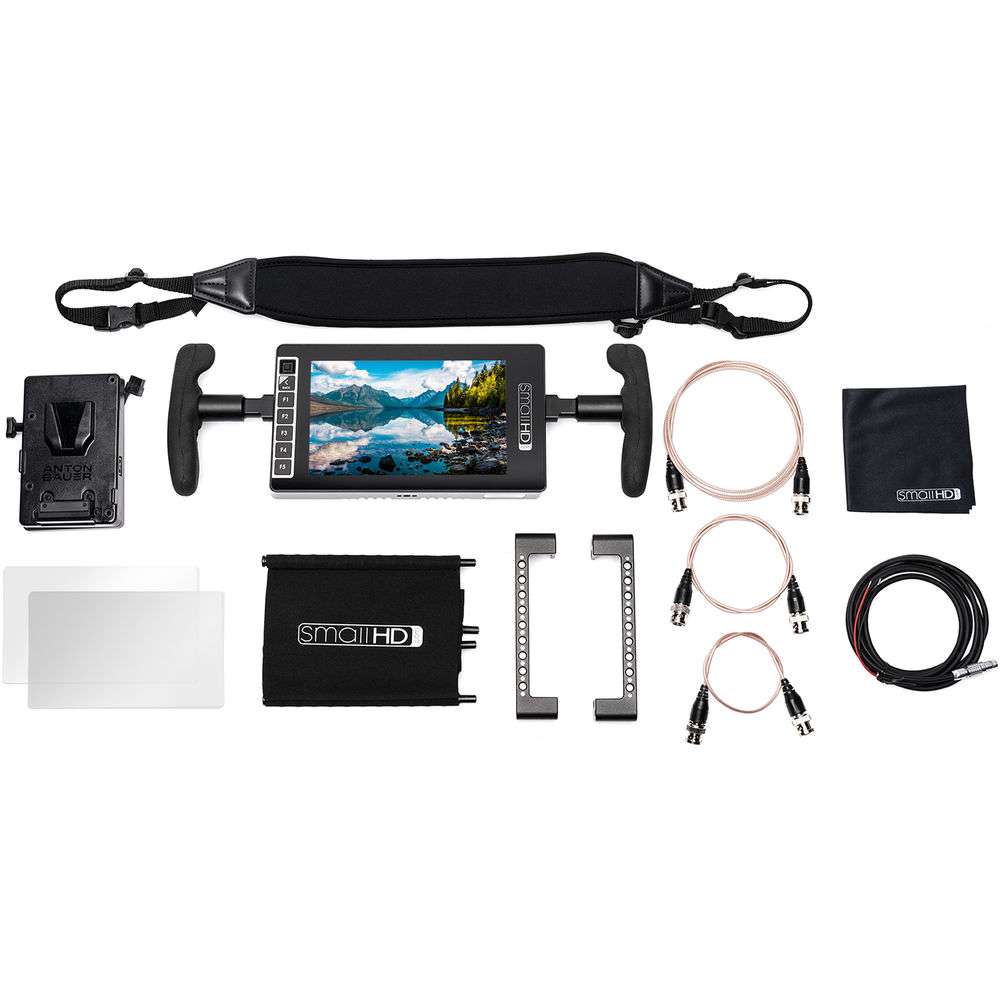

SmallHD 703 UltraBright Directors Kit (V-Mount)

Pixels Per Inch

323 ppi

Image Control

Blue Only, False Color, Focus Peaking, Image Flip, Pixel-to-Pixel Zoom, RGB Parade, Screen Markers, Waveform

Audio Input & Output

1x 1/8" / 3.5 mm Headphone Output

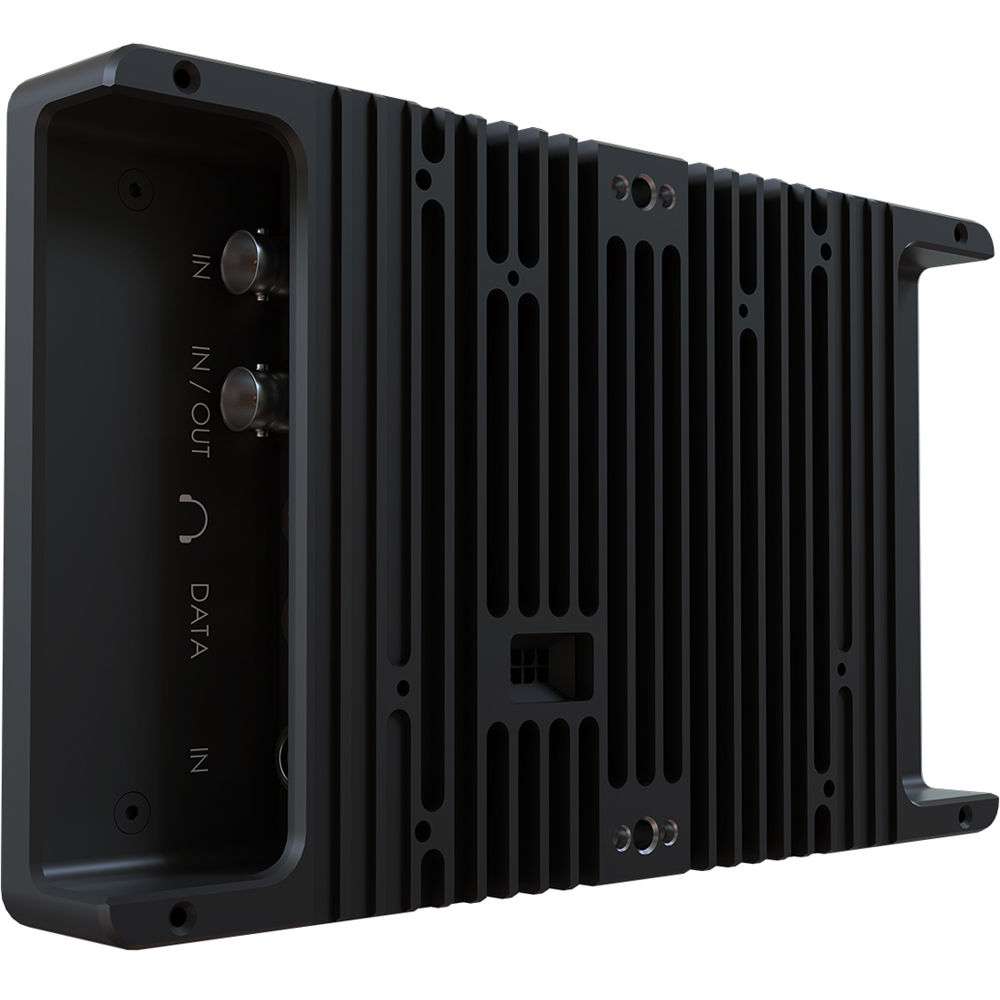

Connector 1

1x BNC

Connector 2

1x BNC

Embedded Audio

HDMI
SDI

Resistance

No

Color

Black

Material

Aluminum

Video Format

SDI (10-Bit 4:2:2)
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50/30/29.97/25/24/23.98
480i
576i
HDMI (8/10/12-Bit)
1080p: 60/59.94/50/30/25/24/23.98
1080PsF: 30/25/24/23.98
1080i: 60/59.94/50
720p: 120/119.88/100/60/59.94/50/30/25/24/23.98
576p: 100/50
480p: 120/119.88/60/59.94
480i: 240/239.76/120/119.88/60/59.94
576i: 200/100/50

Mount

1x 1/4"-20 Female (Top)
1x 1/4"-20 Female (Bottom)

Media Slot

Single Slot: SD/SDHC/SDXC

Battery Type

No

Power Input & Output

1x LEMO 2-Pin Input
1x LEMO 2-Pin Output

Wi-Fi Compatibility

No

Bluetooth Compatibility

No

Input Power

6 to 34 VDC

Dimensions

8.4 x 4.9 x 1.1" / 21.3 x 12.4 x 2.8 cm

Size

6.56 x 4.69" / 16.67 x 11.91 cm

Length

12" / 30.5 cm

Weight

1.7 lb / 748.00 g
