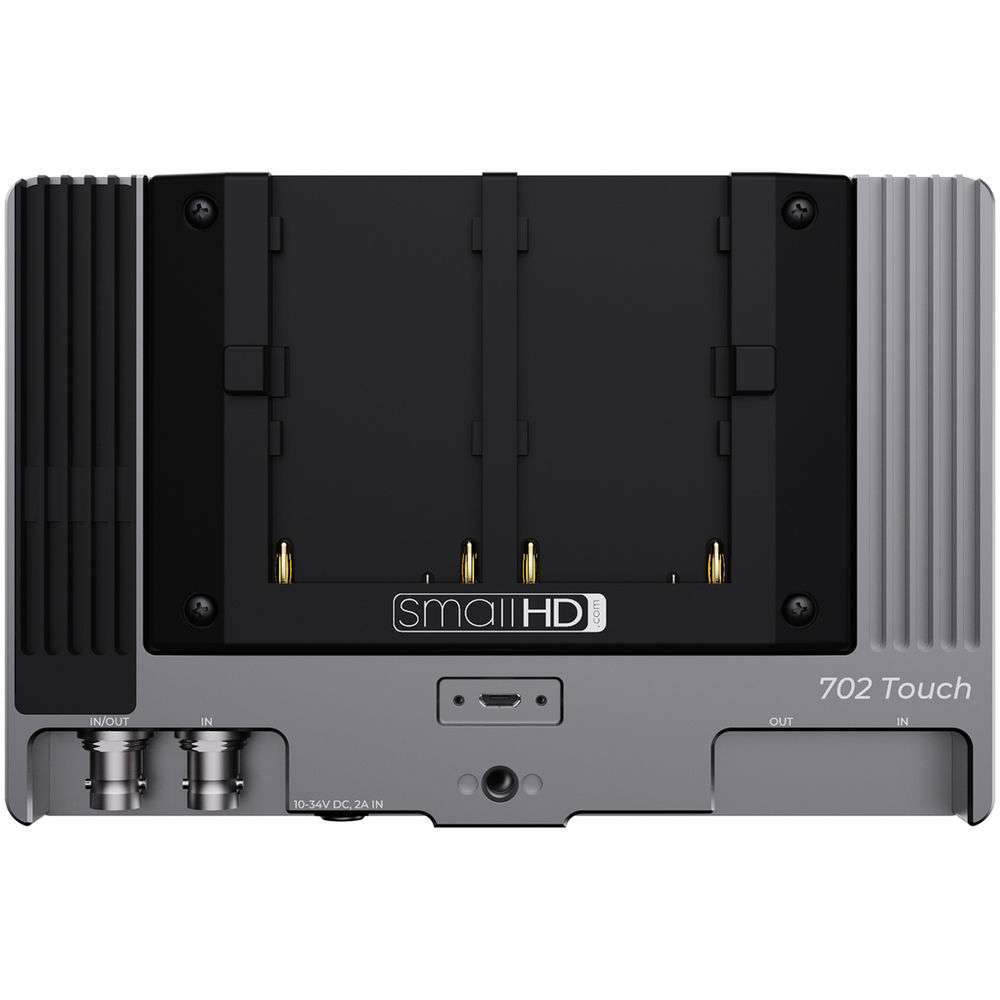

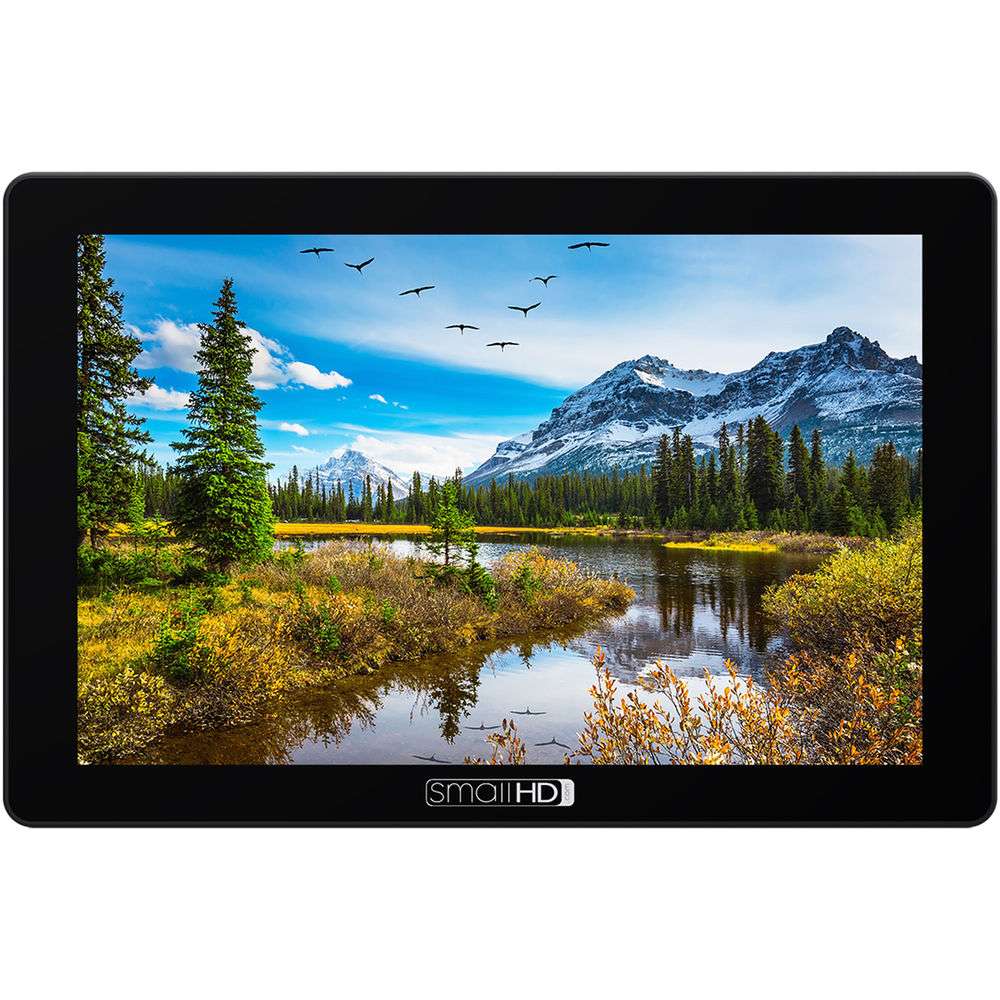

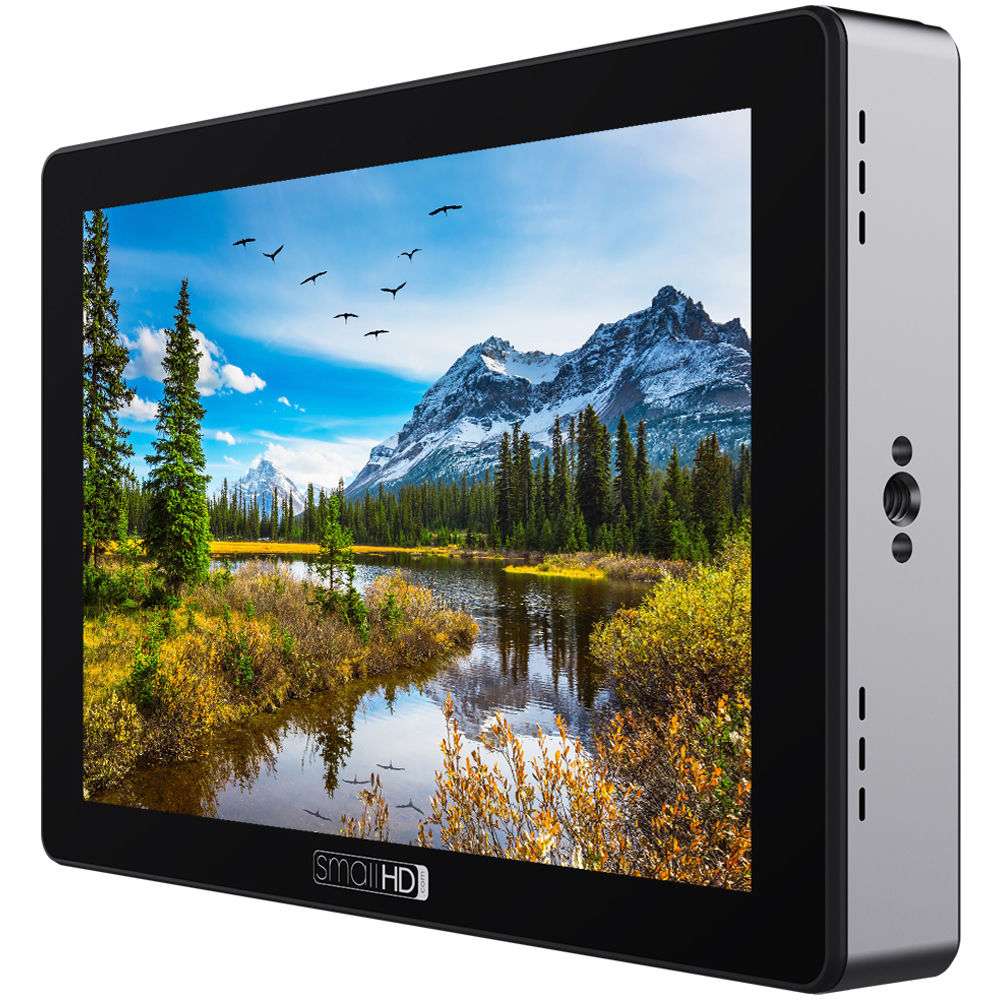

SmallHD 702 Touch 7" On-Camera Monitor

Pixels Per Inch

322 ppi

Image Control

Anamorphic De-Squeeze, False Color, Focus Peaking, Image Flip, Pixel-to-Pixel Zoom, RGB Parade, Screen Markers, Underscan, Waveform

Audio Input & Output

1x 1/8" / 3.5 mm Headphone Output

Embedded Audio

HDMI
SDI

Material

Aluminum

Video Format

SDI (10-Bit 4:2:2 YCC)
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080i: 120/119.88/100/60/59.94/50
720p: 60/59.94/50/30/29.97/25/24/23.98
480i: 59.94
576i
HDMI (8/10/12-Bit 4:4:4/4:2:2/4:2:0 RGB, YCC)
1080p: 60/59.94/50/30/29.97/25/24/23.98
720p: 120/119.88/100/60/59.94/50/30/29.97/25/24/23.98
576p: 200/100/50
480p: 240/239.76/120/119.88/60/59.94
576i: 200/100/50
480i: 240/239.76/120/119.88/60/59.94

Mount

4x 1/4"-20 Female

Media Slot

Single Slot: SD/SDHC/SDXC

Battery Type

1x L-Series, V-Mount, or Gold Mount (Interchangeable Mount)

Power Input & Output

1x Barrel 5.5 mm (34 VDC) Output

Other Input & Output

1x Micro-USB 2.0

Wi-Fi Compatibility

No

Bluetooth Compatibility

No

Input Power

6 to 16.8 VDC

Dimensions

7.09 x 4.67 x 1.29" / 18.01 x 11.86 x 3.28 cm

Weight

18.9 oz / 536.00 g
