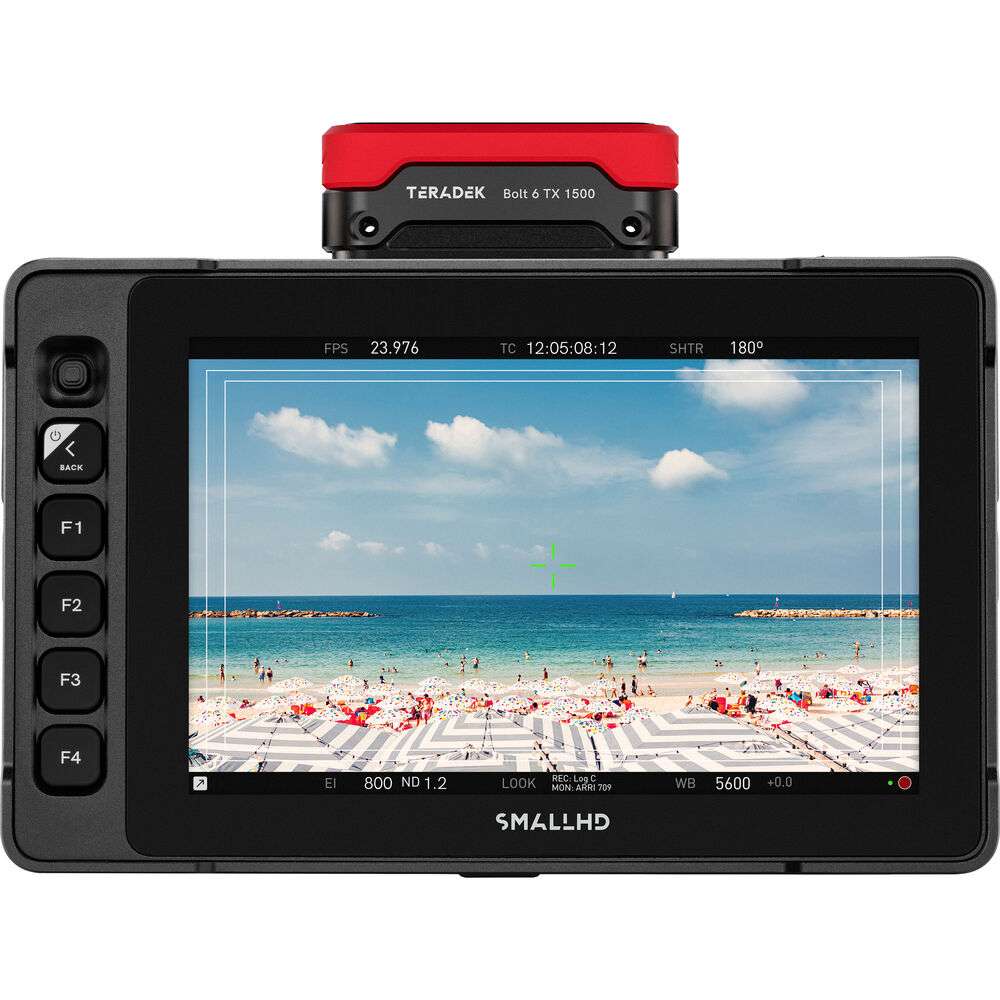

SmallHD ULTRA 7 Bolt 6 TX 1500 Monitor

Pixels Per Inch

314 ppi

Image Control

Blue Only, False Color, Focus Peaking, Image Flip, Pixel-to-Pixel Zoom, RGB Parade, Screen Markers, Waveform

Audio Input & Output

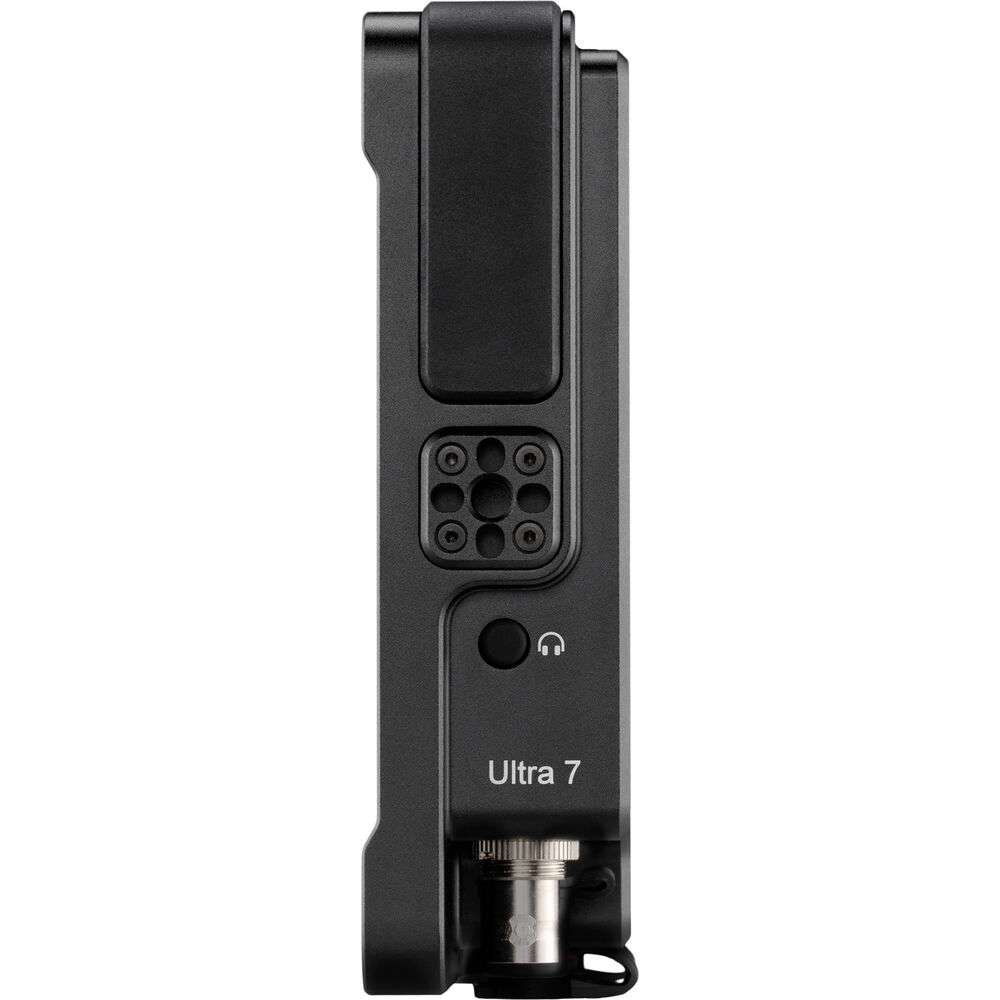

1x 1/8" / 3.5 mm Headphone Output

Embedded Audio

HDMI
SDI

Maximum Range

1500' / 457.2 m

Resistance

Dust/Water-Resistant (IP53)

Video Format

SDI (10-Bit 4:2:2)
DCI 4K: 30/29.97/25/24/23.98
UHD 4K: 30/29.97/24/23.98
DCI 2K: 60/59.94/50/48/47.95
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 100/60/59.94/50/30/29.97/25/24/23.98
480i: 59.94
576i: 50
HDMI (8/10/12/16-Bit 4:4:4)
UHD 4K: 30
1080p: 60/59.94/50/30/25/24/23.98
1080PsF: 30/25/24/23.98
1080i: 60/59.94/50
720p: 120/119.88/100/60/59.94/50/30/25/24/23.98
576p: 100/50
480p: 120/119.88/60/59.94
480i: 240/239.76/120/119.88/60/59.94
576i: 200/100/50

Mount

1x 1/4"-20 Female (Left)
1x 1/4"-20 Female (Bottom)
1x 1/4"-20 Female (Right)

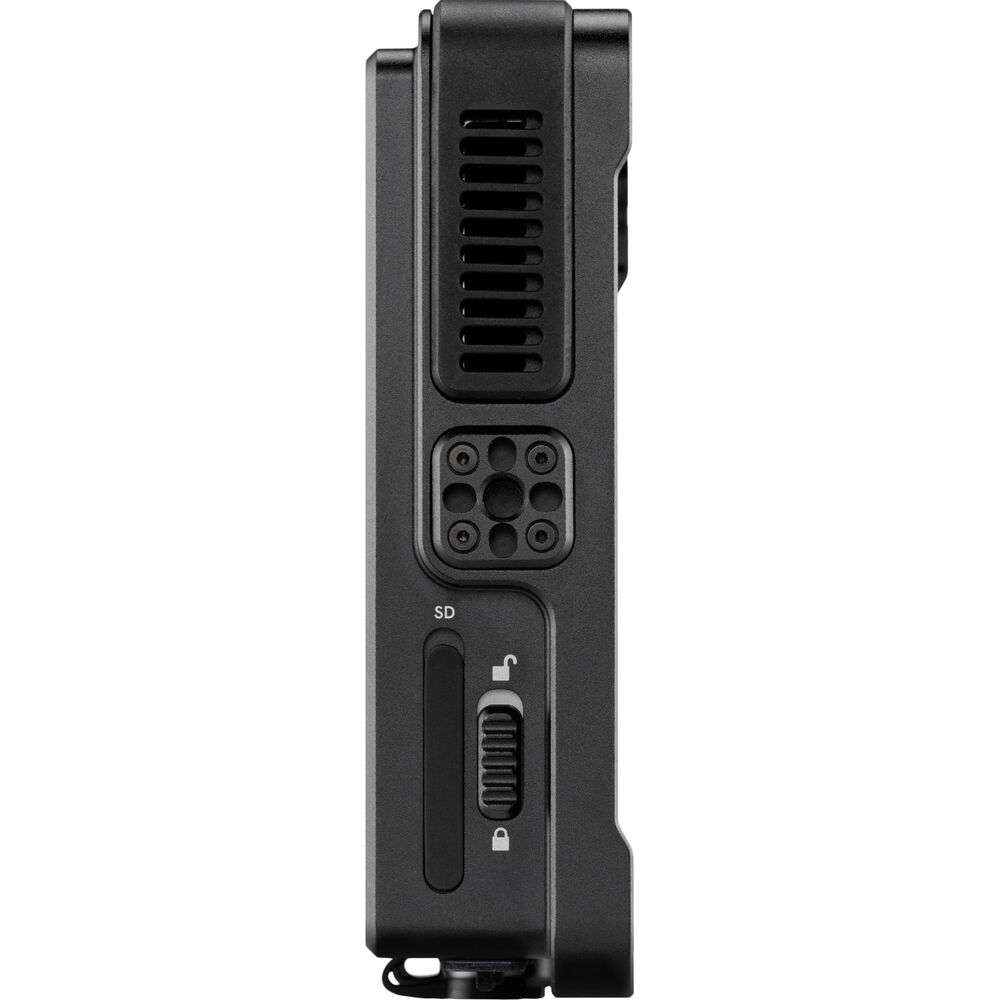

Media Slot

Single Slot: SD (Unspecified Type)

Battery Type

Built-In

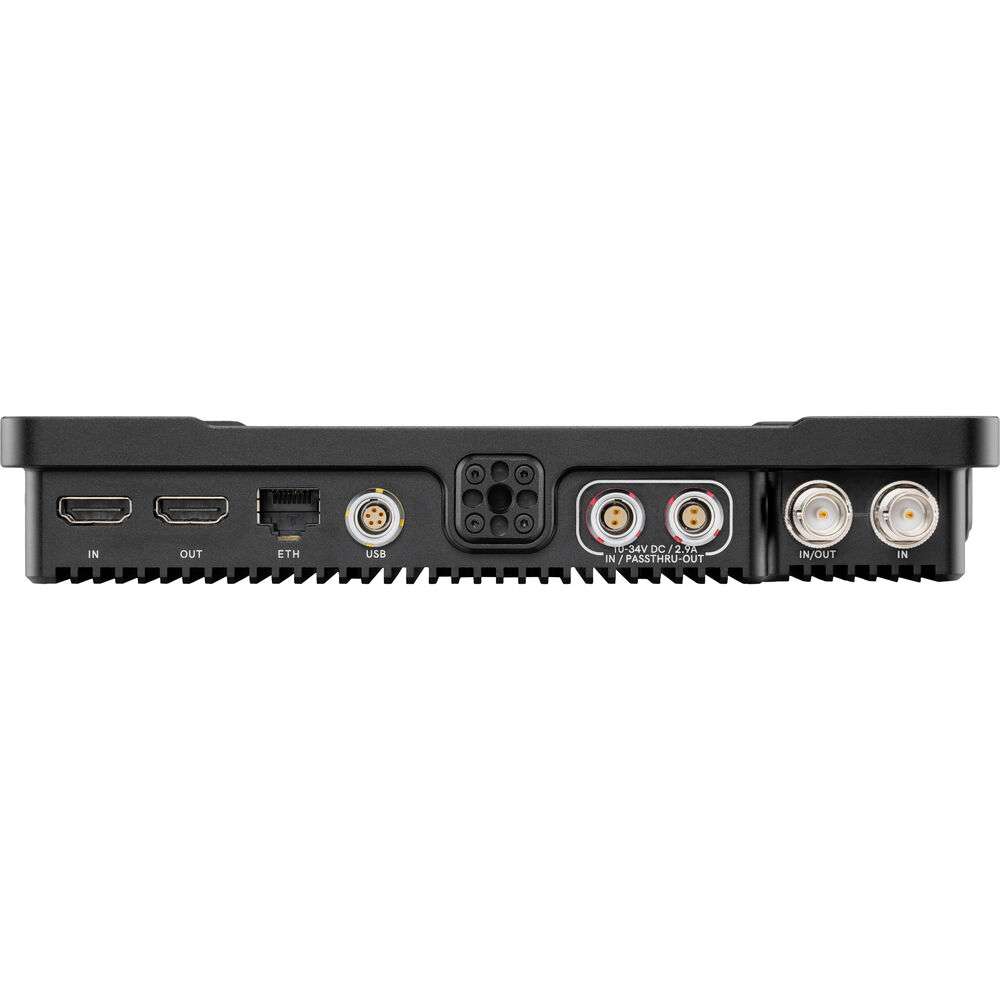

Power Input & Output

1x LEMO 0B 2-Pin (2.1 A / 34 VDC) Input

Other Input & Output

1x LEMO 5-Pin (Camera Control) Output
1x RJ45 (Camera Control) Output

Wi-Fi Compatibility

Yes

Bluetooth Compatibility

No

Material

Aluminum

Input Power

10 - 34 VDC at 2.1 A

Weight

1.98 lb / 900.00 g
