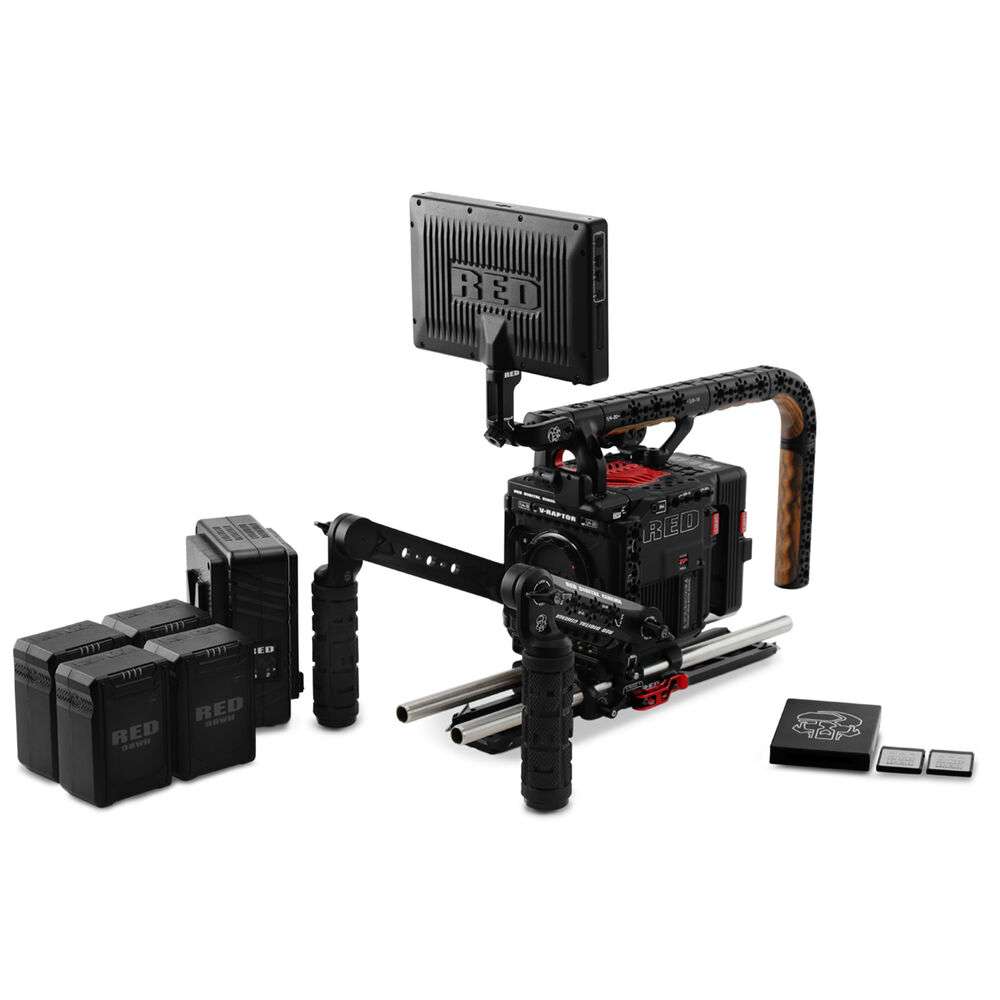

RED DIGITAL CINEMA V-RAPTOR Production Pack (V-Mount)

Video Input & Output

2x BNC (12G-SDI) Output

Touchscreen

Yes

Pixels Per Inch

322 ppi

Battery Chemistry

Lithium-Ion

Battery Capacity

98 Wh

Storage Capacity

2000 GB

Card Type

CFexpress Type B

Read Speed

1785 MB/s (sustained)
1785 MB/s (maximum)

Write Speed

1300 MB/s (sustained)
1550 MB/s (maximum)

Power Source

AC Power (Cable Included)

Audio Input & Output

1x LEMO 5-Pin Mic/Line (+48 V Phantom Power) Input
1x 1/8" / 3.5 mm TRS Stereo Headphone Output

Rod Standard

15 mm LWS / 60 mm Spacing

Material

Aluminum

Mount

2x 1/4"-20 Female

Camera Compatibility

RED V-RAPTOR

Camera Mount

Arca-Type Plate, 3/8"-16 Male Thread

Tripod Mount

Dovetail Plate
1/4"-20 Female Thread, 3/8"-16 Female Thread

Shoe Mount

None

Accessory Mount

28x 1/4"-20

Rod Compatibility

Baseplate, Front
2x 15 mm Rod Port

Media Slot

1x CFexpress Type B (CFexpress 2.0, PCIe 3.0 x4)

Battery Mount

V-Mount

Battery Type

Micro V-Mount

Battery Plate

No

Charger Compatibility

RED REDVOLT / RED REDVOLT XL / V-Mount

Compatibility

USB-C Male [3.2 Gen 2x2 (20 Gb/s)]

Input & Output

1x D-Tap / P-Tap Output
1x USB-A Output

Power Input & Output

1x IEC Female Input
• 100 to 240 VAC, 50 / 60 Hz

Other Input & Output

1x USB-C Control/Data/Video
1x 9-Pin Control/Data Input/Output

Wireless Control

2.4 / 5 GHz Wi-Fi Video Output

Included Adapters & Cables

1x USA Type-A/B Plug to IEC Male Cable

Output Voltage

14.8 VDC

Dimensions

6.1 x 4.3 x 4.3" / 155.5 x 108 x 108 mm

Weight

4 lb / 1.8 kg
