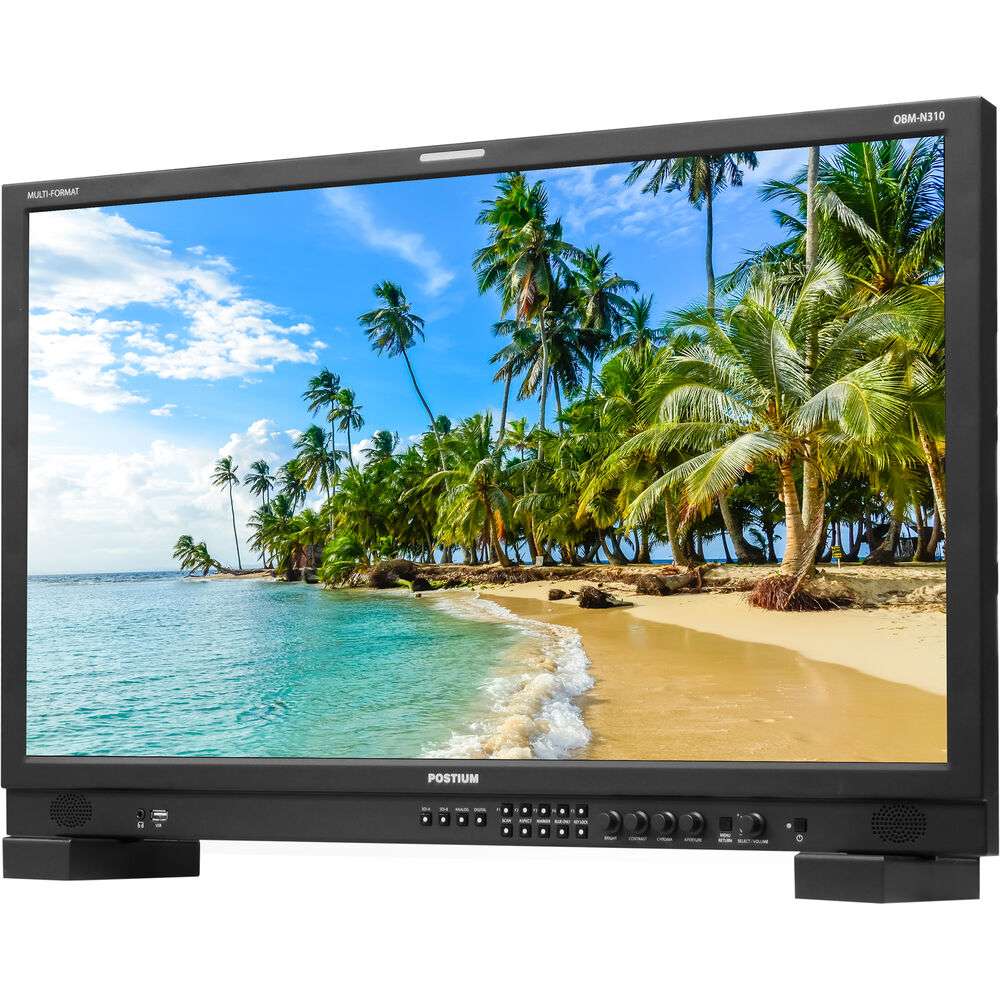

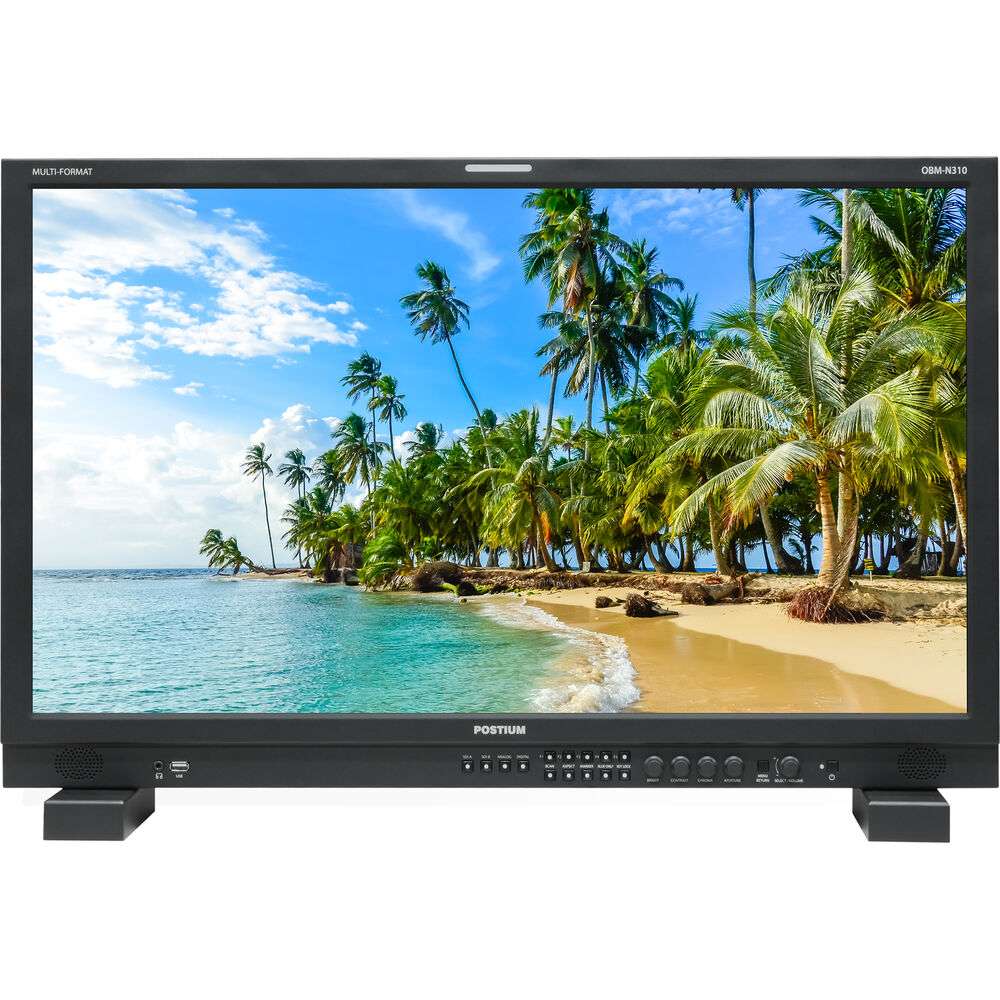

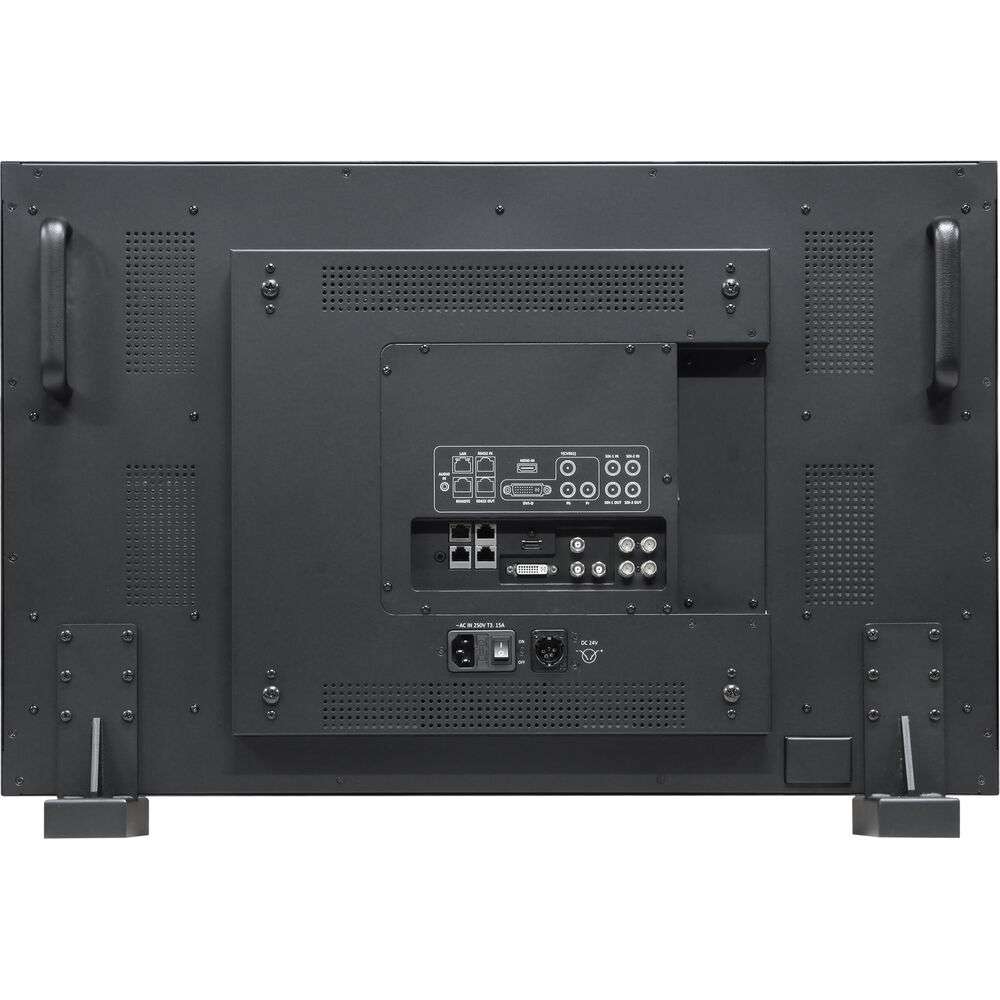

Postium Korea OBM-N310 32" LCD Monitor with 3G-SDI

Pixels Per Inch

69 ppi

Image Control

False Color, Focus Assist, Focus Peaking, H/V Delay, Screen Markers, Vectorscope, Waveform, Zebra

Audio Input & Output

1x 1/8" / 3.5 mm Line Input
1x 1/8" / 3.5 mm Headphone Output

Embedded Audio

HDMI/SDI

Video Format

DVI/HDMI/SDI (8/10/12-Bit 4:4:4/4:2:2 RGB, YCC)
DCI 2K: 60/59.94/50/48/47.95/30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080i: 60/59.94/50
1035i: 60/59.94
720p: 60/59.94/50
576i: 50
480p: 60/59.94
Component
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576i: 50
480i: 60/59.94
Composite
NTSC: 59.94
576i: 50

Media Slot

No

Power Input & Output

1x XLR 4-Pin (24 VDC) Input

Other Input & Output

1x RJ45 (LAN) Input/Output
1x RJ45 (Parallel) Input/Output
1x RJ45 (RS-422) Input
1x RJ45 (RS-422) Output

Wi-Fi Compatibility

No

Bluetooth Compatibility

No

Input Power

24 VDC
100 to 230 VAC, 50 / 60 Hz

Dimensions

29.5 x 20 x 6.9" / 749 x 507 x 175 mm (Including Stand)

Weight

48.50 lb / 22.00 kg
