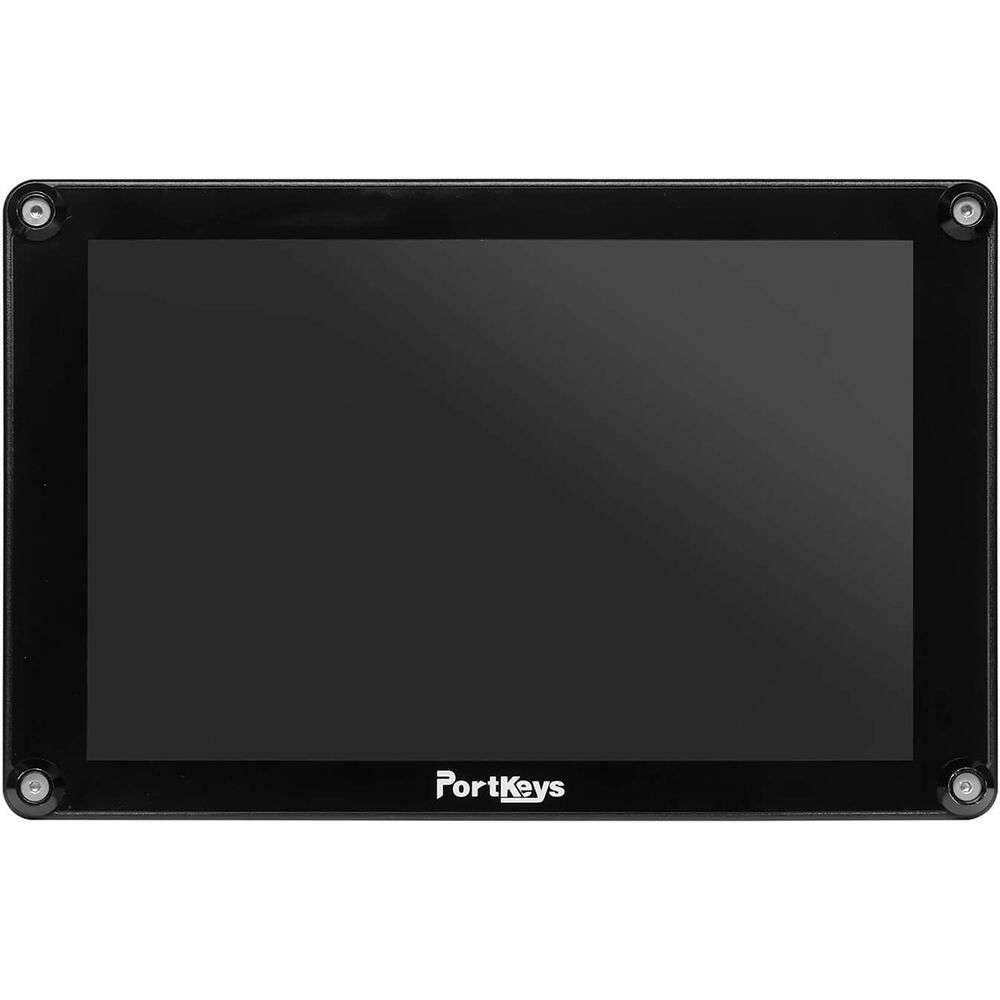

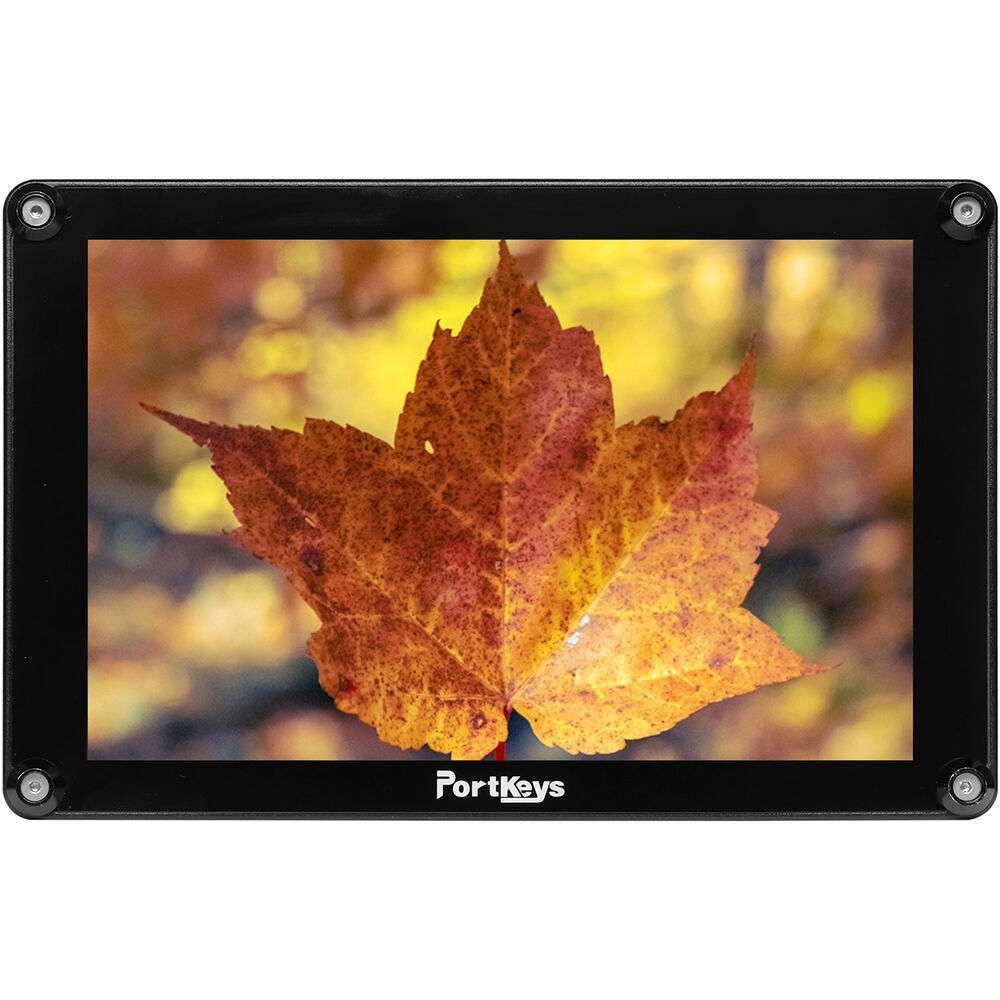

PORTKEYS HS8 8" 3G-SDI 4K HDMI/3G-SDI High-Bright Monitor with 3D LUT Support

Pixels Per Inch

283 ppi

Image Control

Anamorphic De-Squeeze, Blue Only, Check Field, Color Temperature Selection, Customizable Aspect Ratios, False Color, Focus Peaking, Green Only, Histogram, Image Flip, OSD Flip, Red Only, RGB Parade, Screen Markers, Vectorscope, Waveform, Zebra

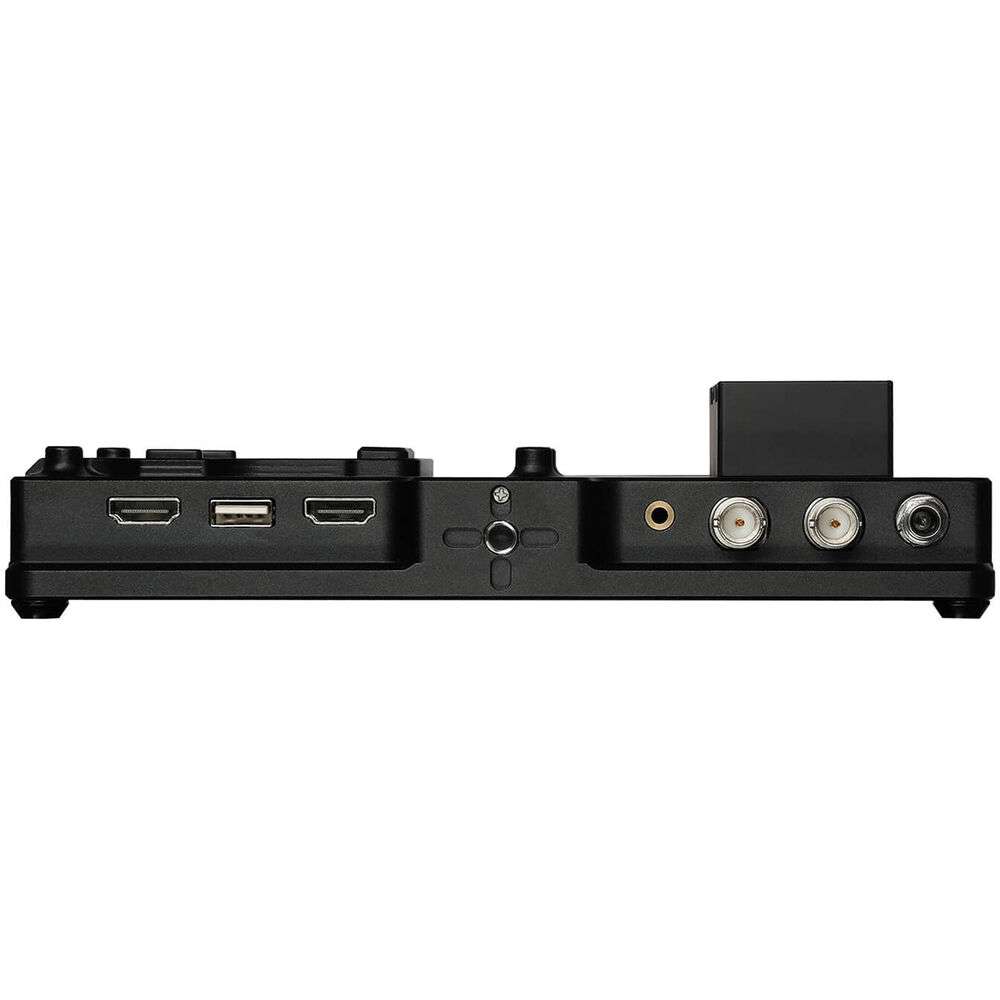

Audio Input & Output

1x 1/8" / 3.5 mm Headphone Output

Embedded Audio

HDMI
SDI

Video Format

HDMI
DCI 4K: 60/59.94/50/30/29.97/25/24/23.98
UHD 4K: 60/59.94/50/30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
SDI (4:2:2 YUV)
1080p: 60/59.94/50/30/29.97/25/24/23.98
SDI (4:4:4/4:2:2/4:2:0 RGB, YUV)
1080PsF: 30/29.97/25/24/23.98
SDI (4:4:4/4:2:2)
1080i: 60/59.94/50
720p: 60/59.94/50

Mount

2x 1/4"-20 Female

Media Slot

No

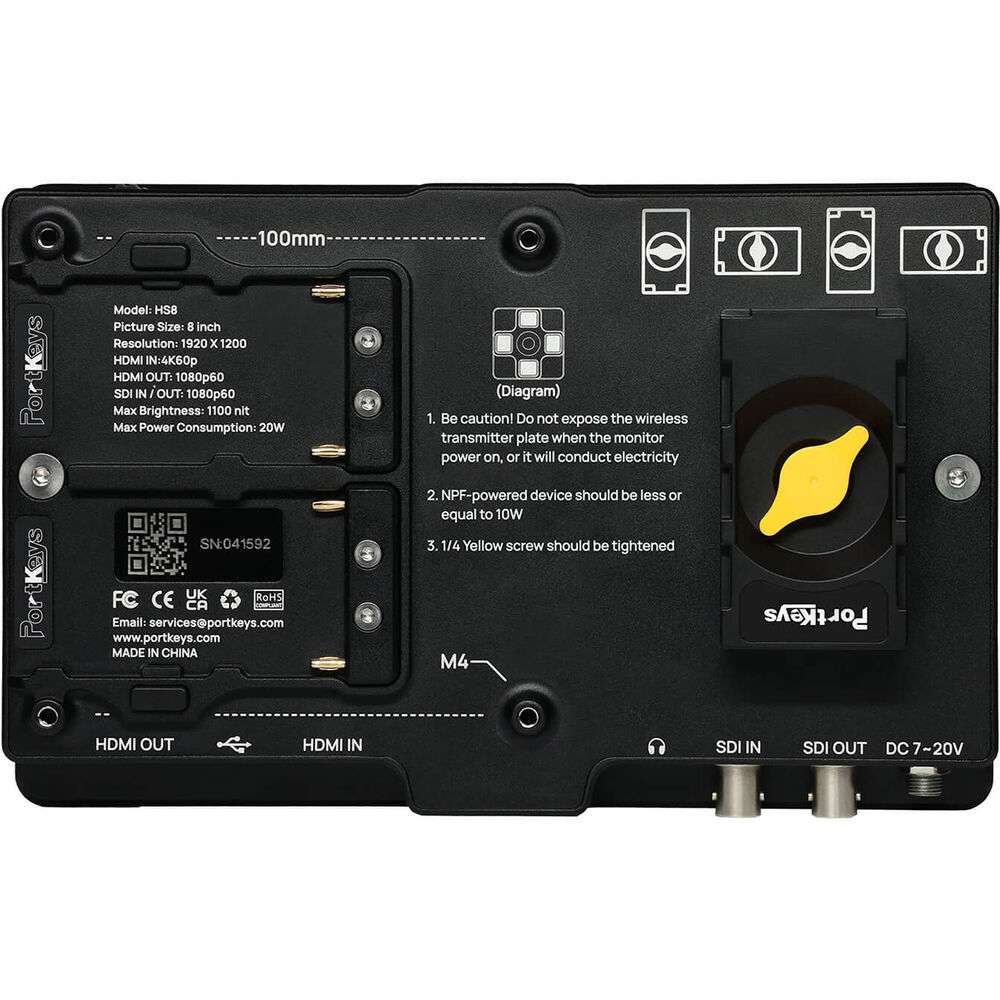

Battery Type

2x L-Series

Power Input & Output

1x Barrel (20 VDC) Input

Other Input & Output

1x USB-A (LUT Upload)

Wi-Fi Compatibility

No

Bluetooth Compatibility

No

Material

Aluminum

Input Power

7 to 20 VDC

Dimensions

81.9 x 52.6 x 19.9" / 208 x 133.7 x 50.5 cm

Weight

23.81 oz / 675.00 g
