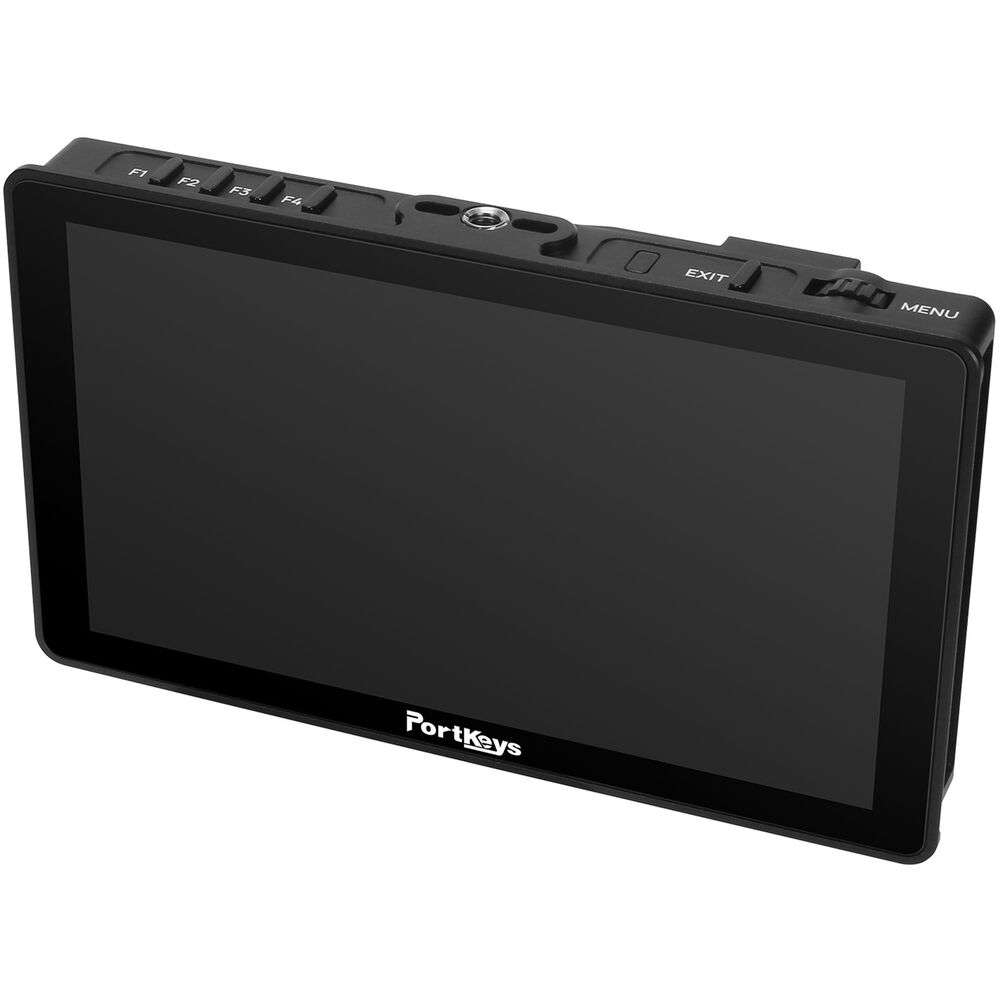

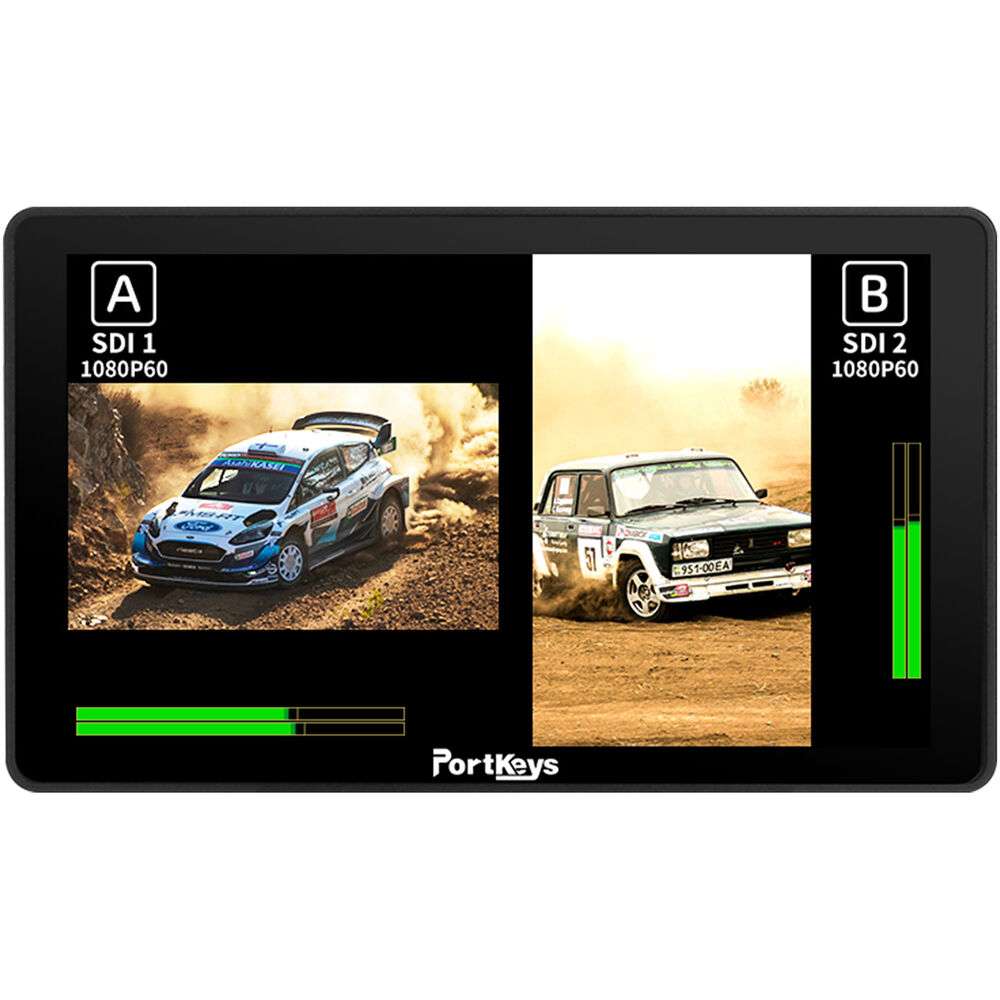

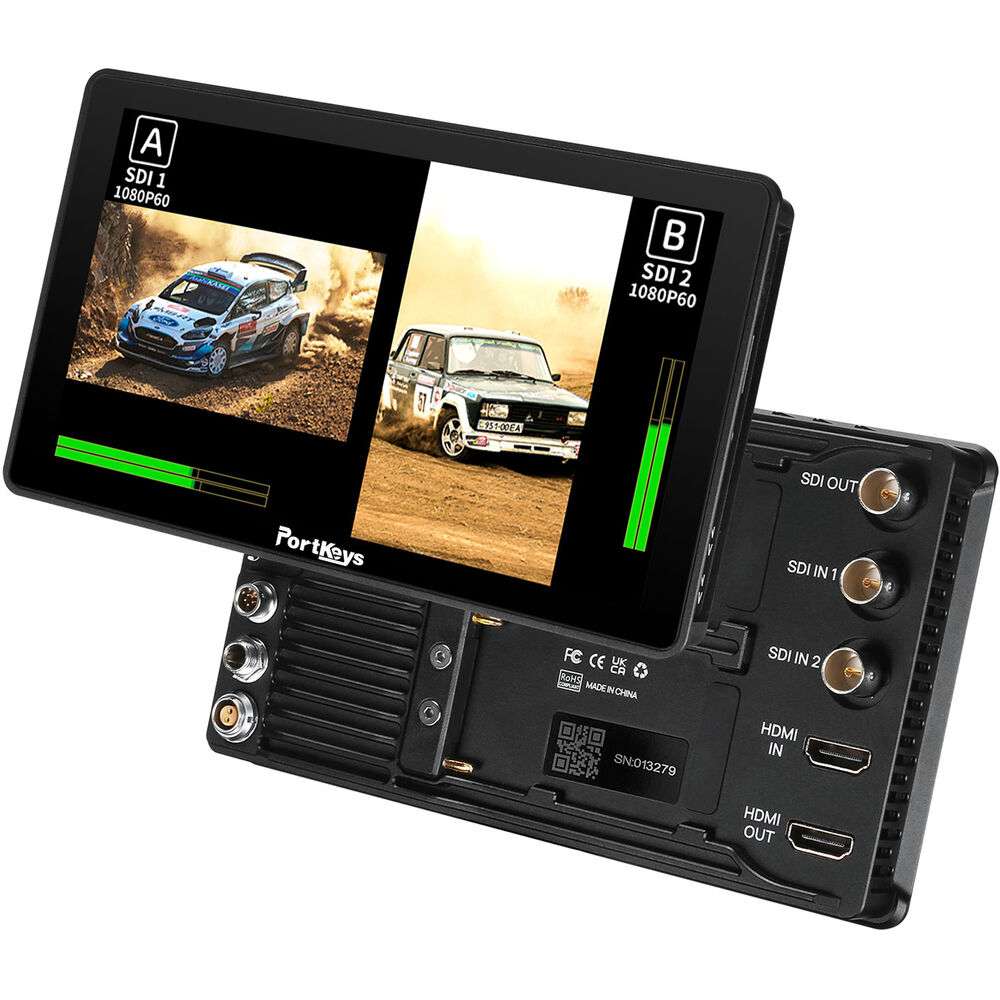

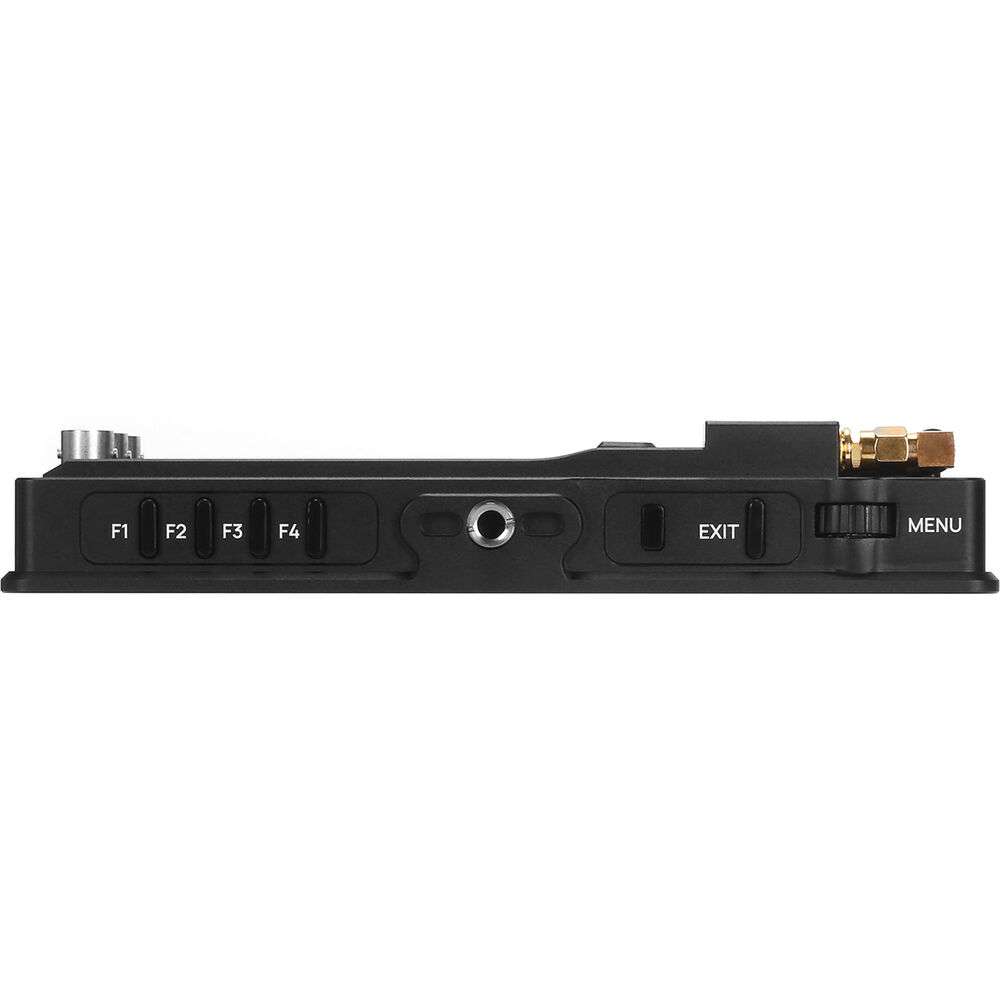

PORTKEYS BM7 II DS 7" High-Bright Monitor with Wireless Camera Control

Pixels Per Inch

314 ppi

Image Control

Anamorphic De-Squeeze, Check Field, Color Temperature Selection, False Color, Focus Peaking, Histogram, Image Flip, Vectorscope, Waveform, Zebra

Audio Input & Output

1x 1/8" / 3.5 mm Headphone Output

Embedded Audio

HDMI: 2-Channel
SDI: 8-Channel

Resistance

None

Material

Aluminum

Video Format

SDI (4:4:4/4:2:2 YUV)
1080p: 30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
SDI
1080p: 60/59.94/50
HDMI
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576p: 50
576i: 50
480p: 60/59.94/50
480i: 60/59.94/50

Mount

2x 1/4"-20 Female

Media Slot

No

Battery Type

2x L-Series

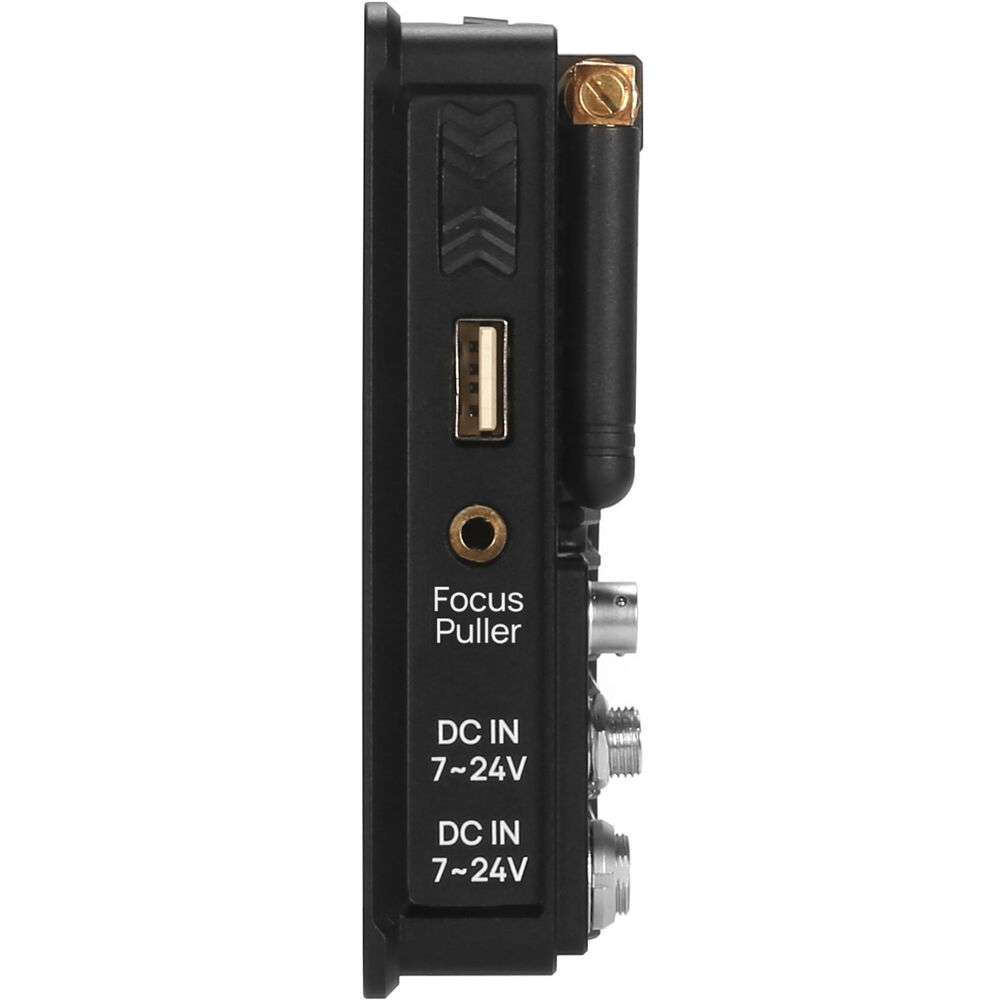

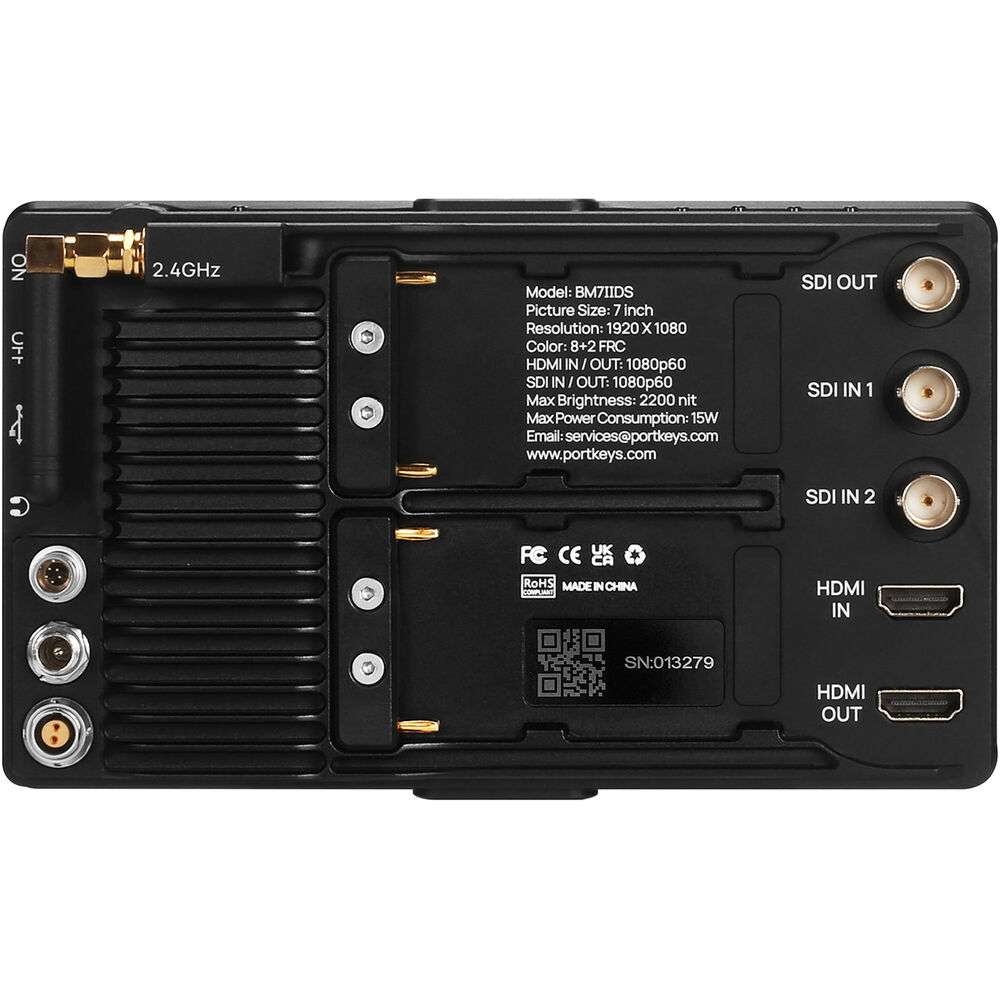

Power Input & Output

1x LEMO 2-Pin Input
1x Barrel 2.1 mm Input

Other Input & Output

1x Mini-USB (Camera Control)
1x Unspecified 5-Pin (Motor Control)
1x USB-A (Firmware/LUT Upload)

Wi-Fi Compatibility

Yes

Bluetooth Compatibility

Yes

Input Power

7 - 24 VDC

Dimensions

7.1 x 4.2 x 1.2" / 179.3 x 106.8 x 31 mm

Weight

1.0 lb / 460 g
