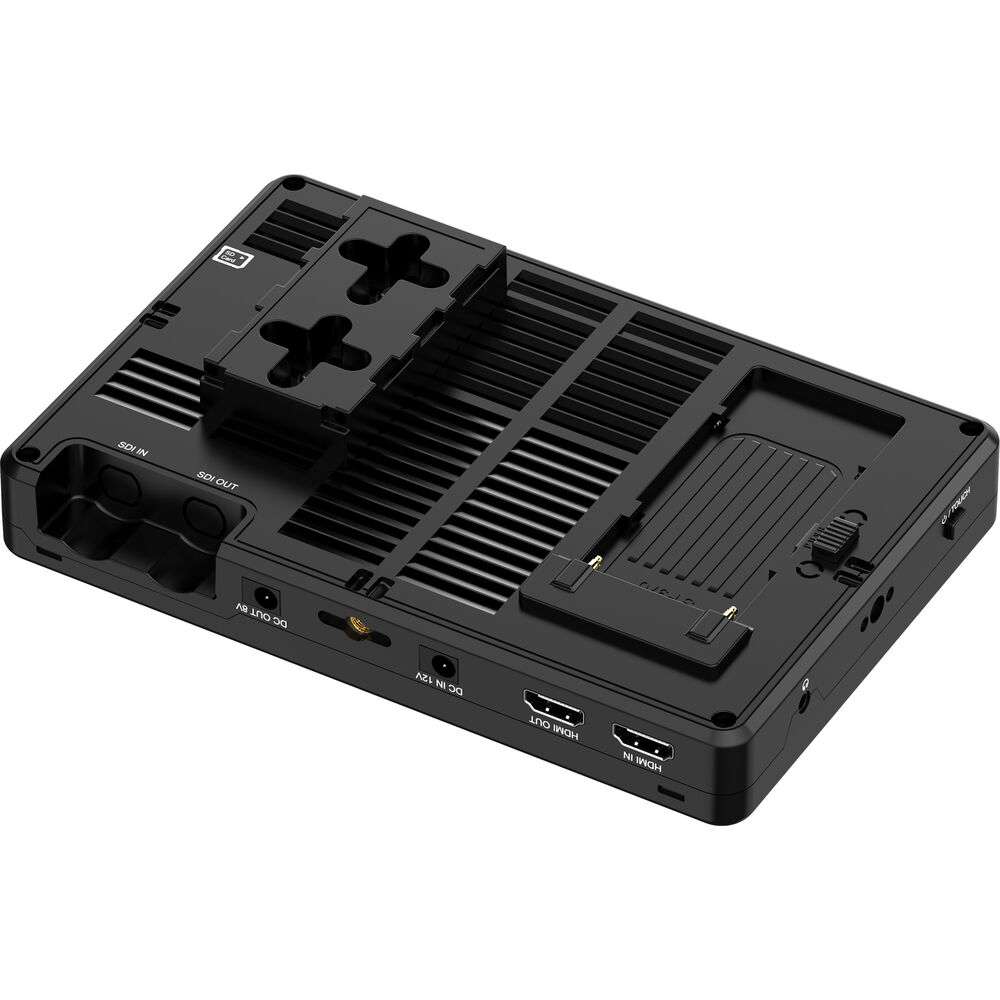

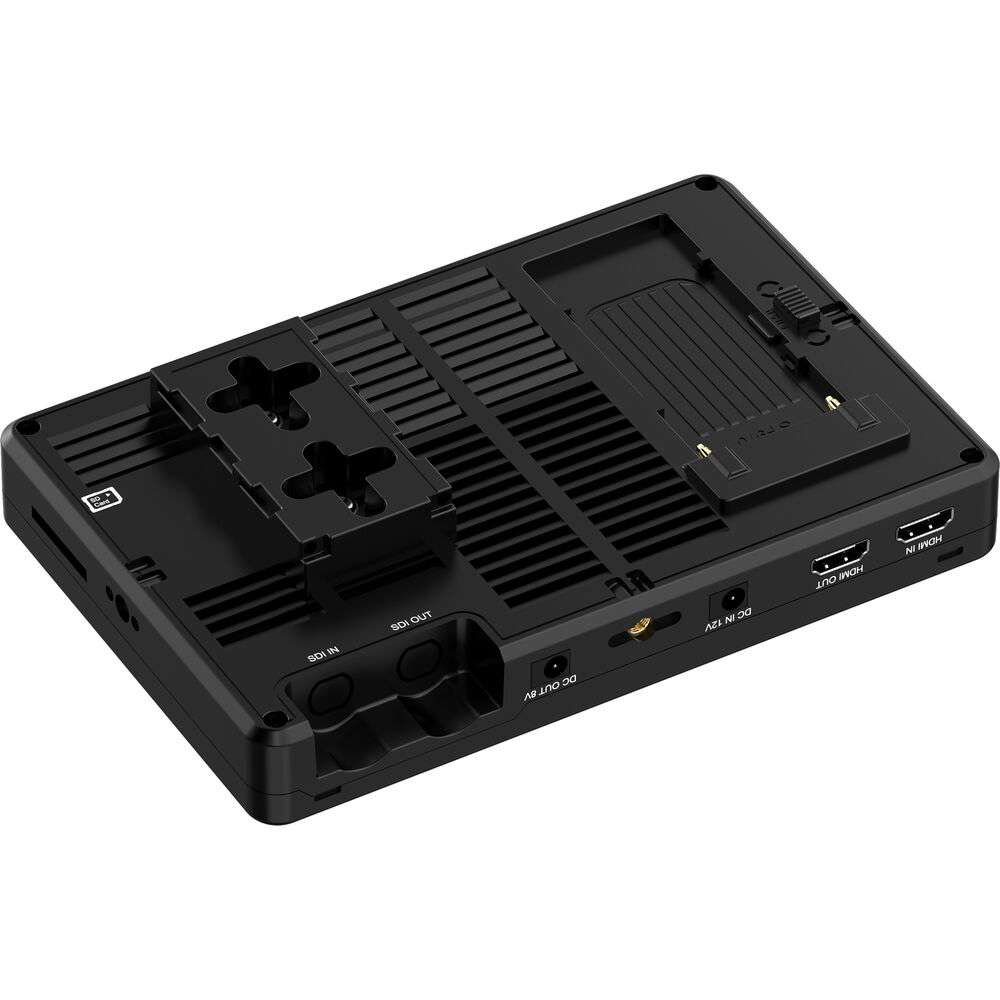

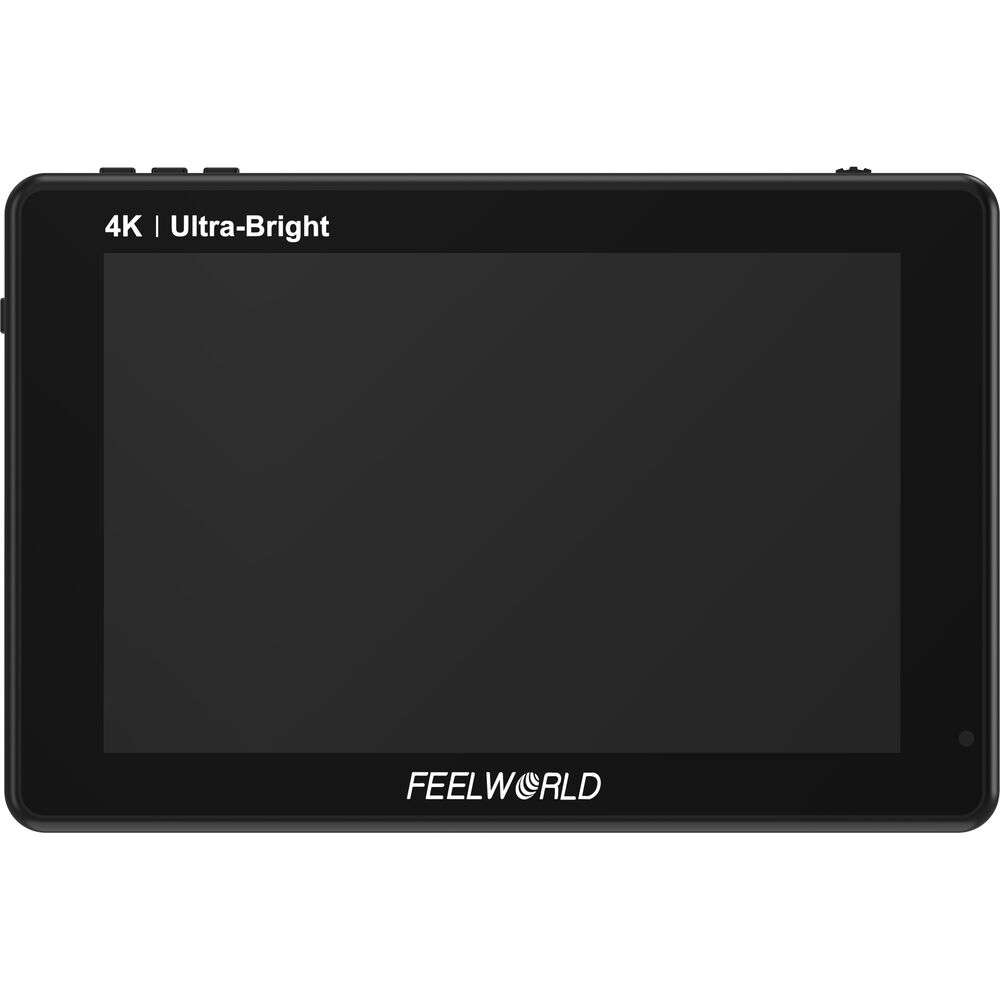

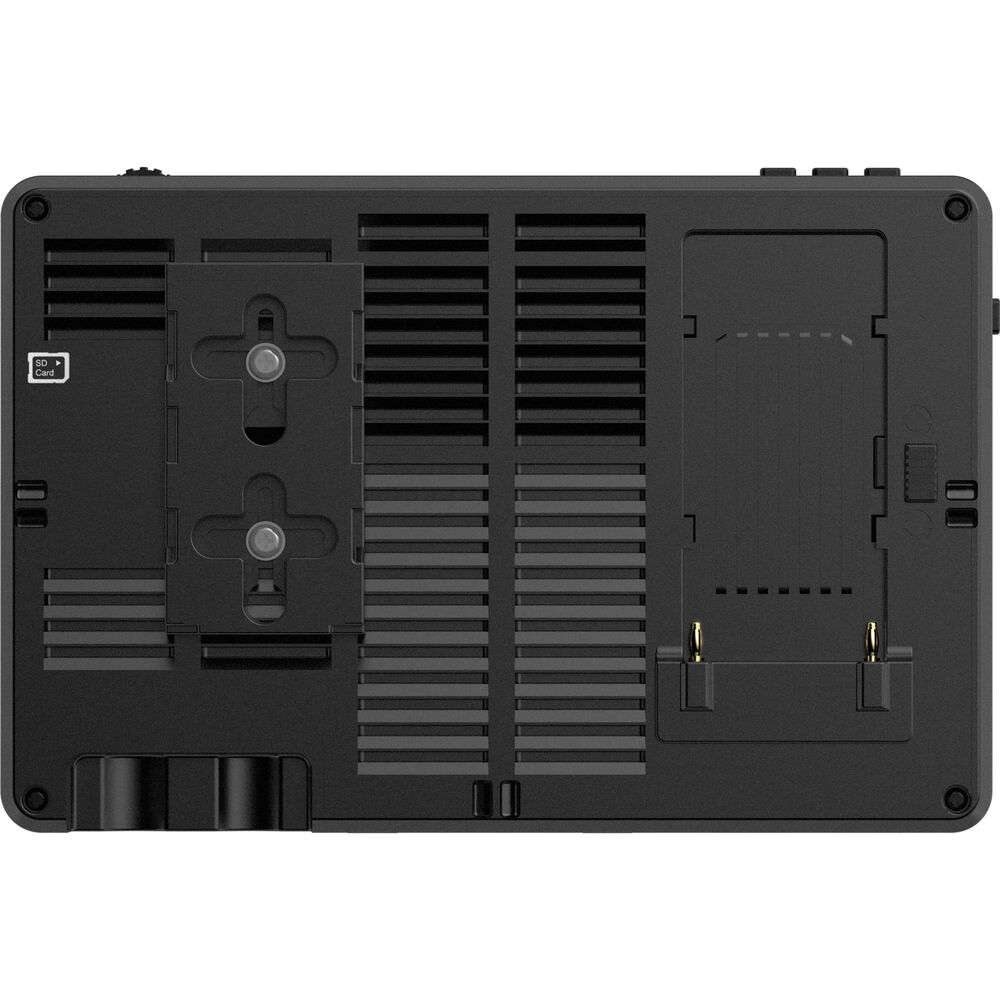

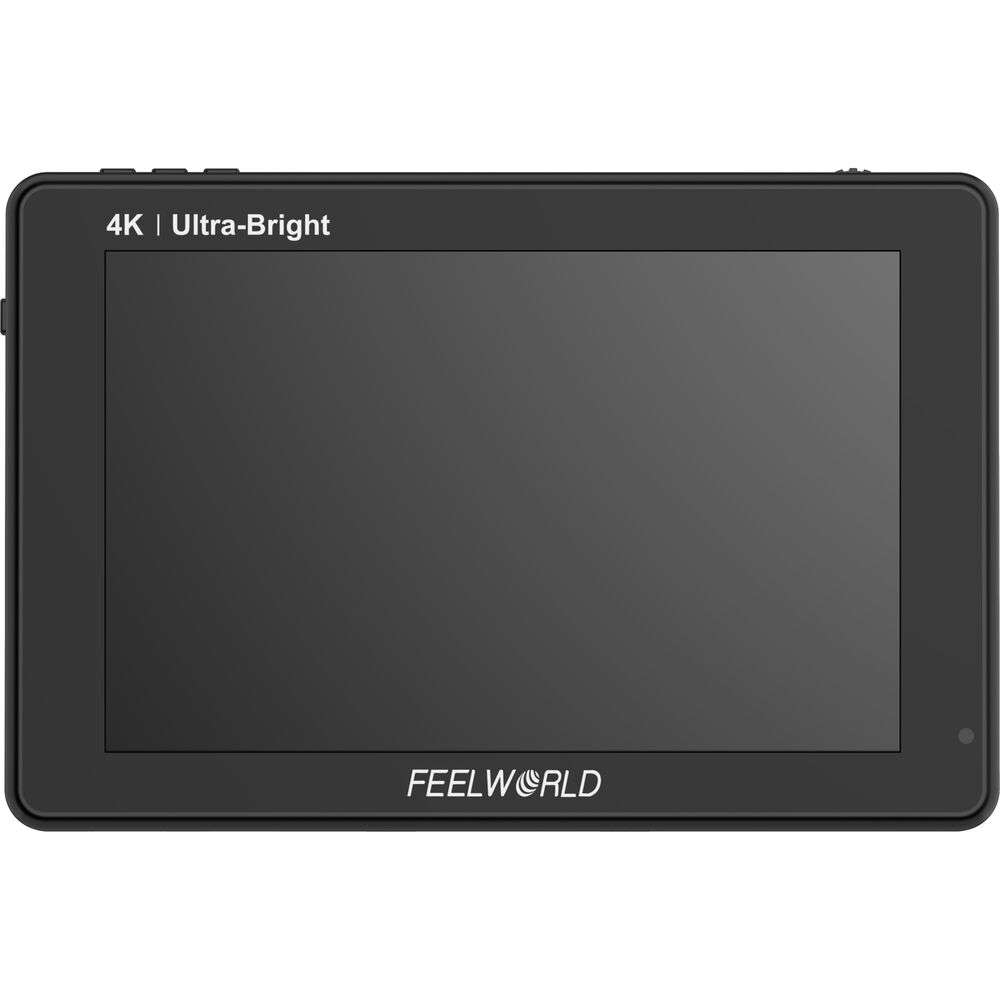

FeelWorld LUT7 PRO 7" Ultrabright HDMI Field Monitor with F970 Accessory Mounting Plate

Image Control

Anamorphic De-Squeeze, Blue Only, Check Field, Customizable Aspect Ratios, False Color, Focus Peaking, Green Only, Histogram, Image Flip, Marker Color, Pixel-to-Pixel Zoom, Red Only, RGB Parade, Scaling, Screen Markers, Underscan, Vectorscope, Waveform, Zebra

Audio Input & Output

1x 1/8" / 3.5 mm Headphone Output

Embedded Audio

HDMI

Resistance

No

Video Format

HDMI
DCI 4K: 24
UHD 4K: 30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50/30/29.97/25/24/23.98
576p: 25
480p: 29.97
576i: 50
480i: 59.94
SDI
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 24/23.98
1080i: 60/59.94/50
576i: 50
480i: 59.94

Mount

1x 1/4"-20 Female (Left)
1x 1/4"-20 Female (Bottom)
1x 1/4"-20 Female (Right)

Media Slot

Single Slot: SD/SDHC [LUT Upload Only]

Battery Type

1x L-Series

Power Input & Output

1x Barrel 3.5 mm (8 VDC) Output

Wi-Fi Compatibility

No

Bluetooth Compatibility

No

Input Power

7 to 24 VDC at 2 A

Dimensions

7.5 x 5 x 1.1" / 190 x 126 x 27 mm

Weight

15.87 oz / 450.00 g, Including
