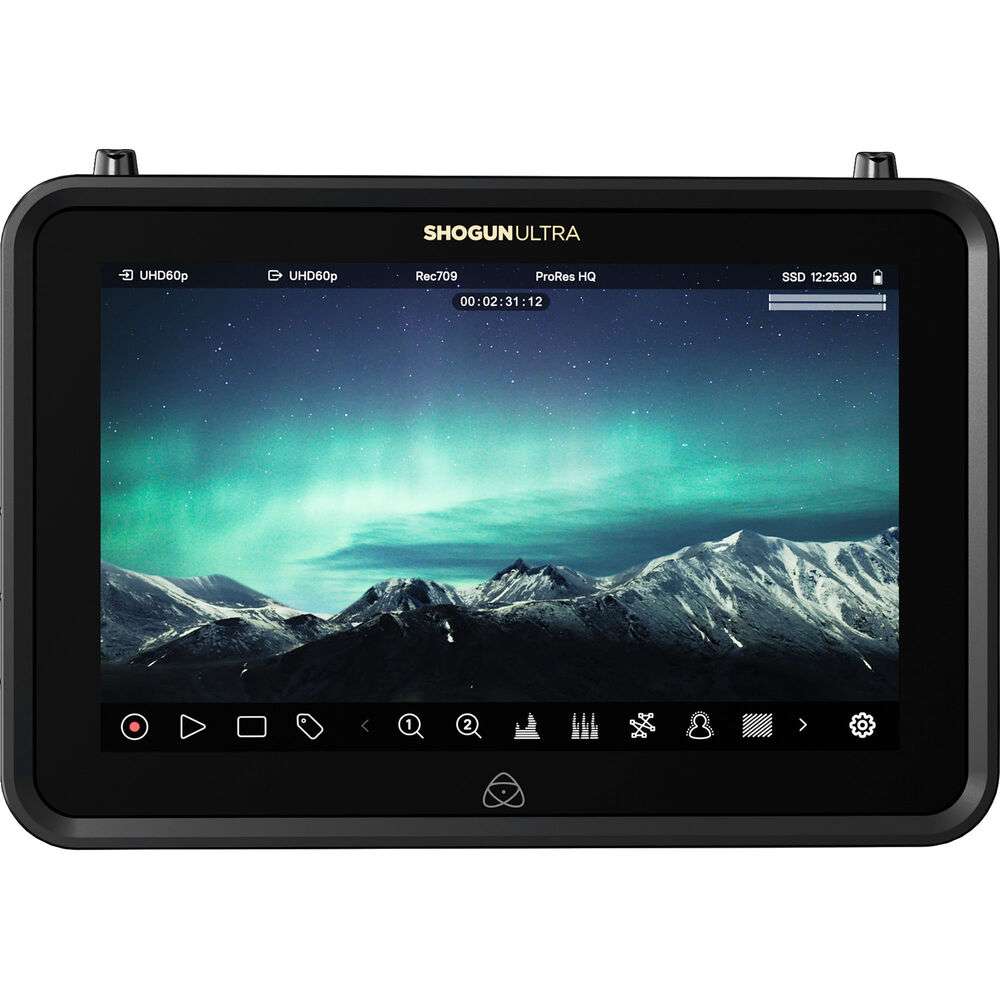

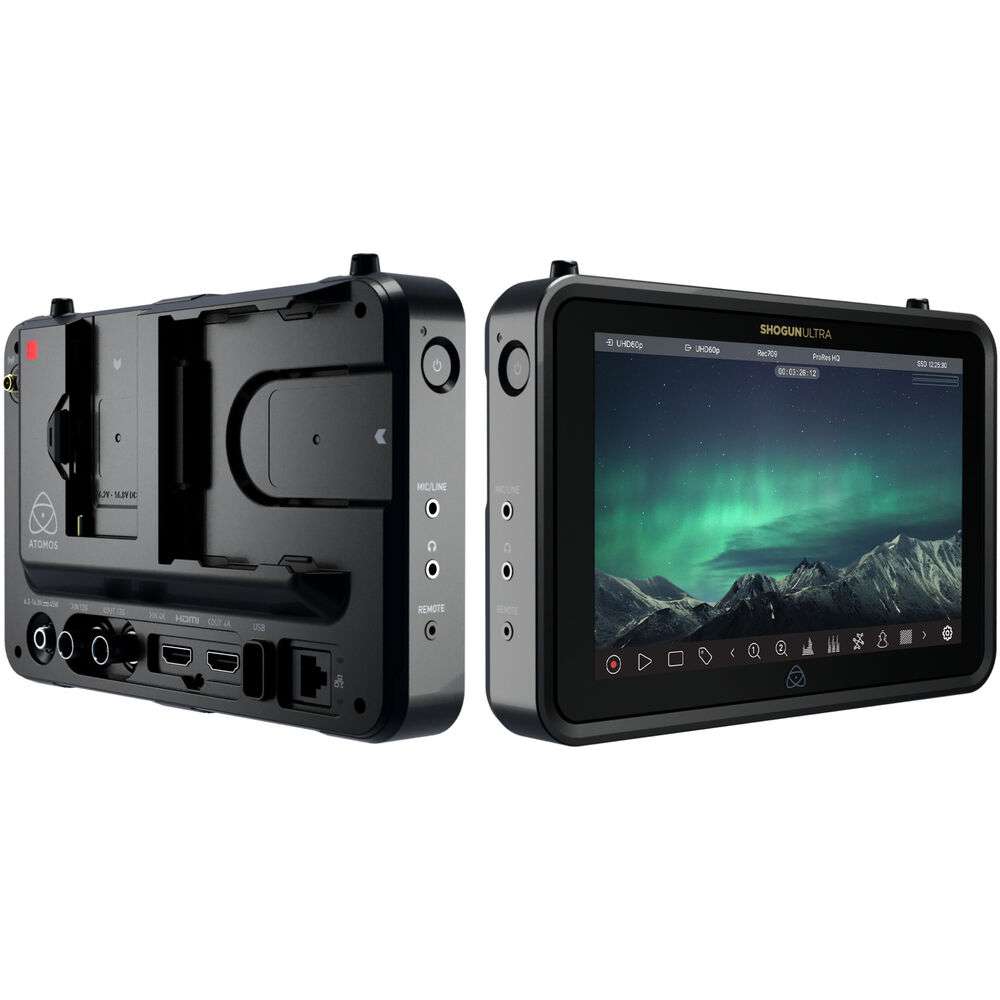

Atomos 7" Shogun Ultra Monitor-Recorder

Shop Atomos

Atomos 7" Shogun Ultra Monitor-Recorder

#ATOMSHGU01 • Used in 6 rigs

Shop Atomos

Atomos 7" Shogun Ultra Monitor-Recorder

#ATOMSHGU01 • Used in 6 rigs

Prices

Check

Buy

As of 08:07 UTC -

Check

Buy

As of 2026-03-11 08:10 UTC -

Specs

Brightness

2000 nits

Native Resolution

1920 x 1200

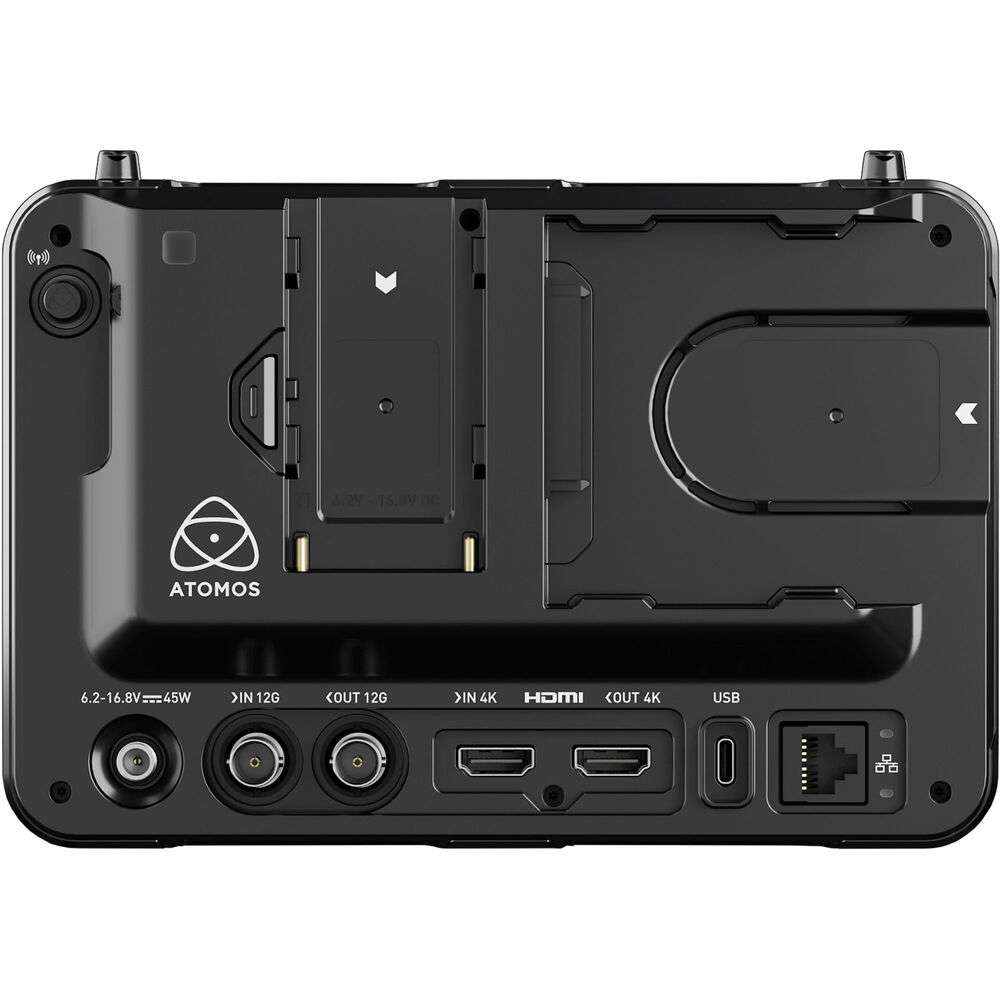

Video Input & Output

1x HDMI 2.0 Input
1x BNC (12G-SDI) Input
1x HDMI 2.0 Output
1x BNC (12G-SDI) Output

Display Type

IPS-Type LCD

Display Size

7.0" / 17.8 cm

Aspect Ratio

16:9

Touchscreen

Yes

HDR Support

Yes, HDR10

Color Support

1.07 Billion Colors (10-Bit)

Pixels Per Inch

325 ppi

Image Control

Anamorphic De-Squeeze, False Color, Focus Peaking, OSD Flip, RGB Parade, Vectorscope, Waveform, Zebra

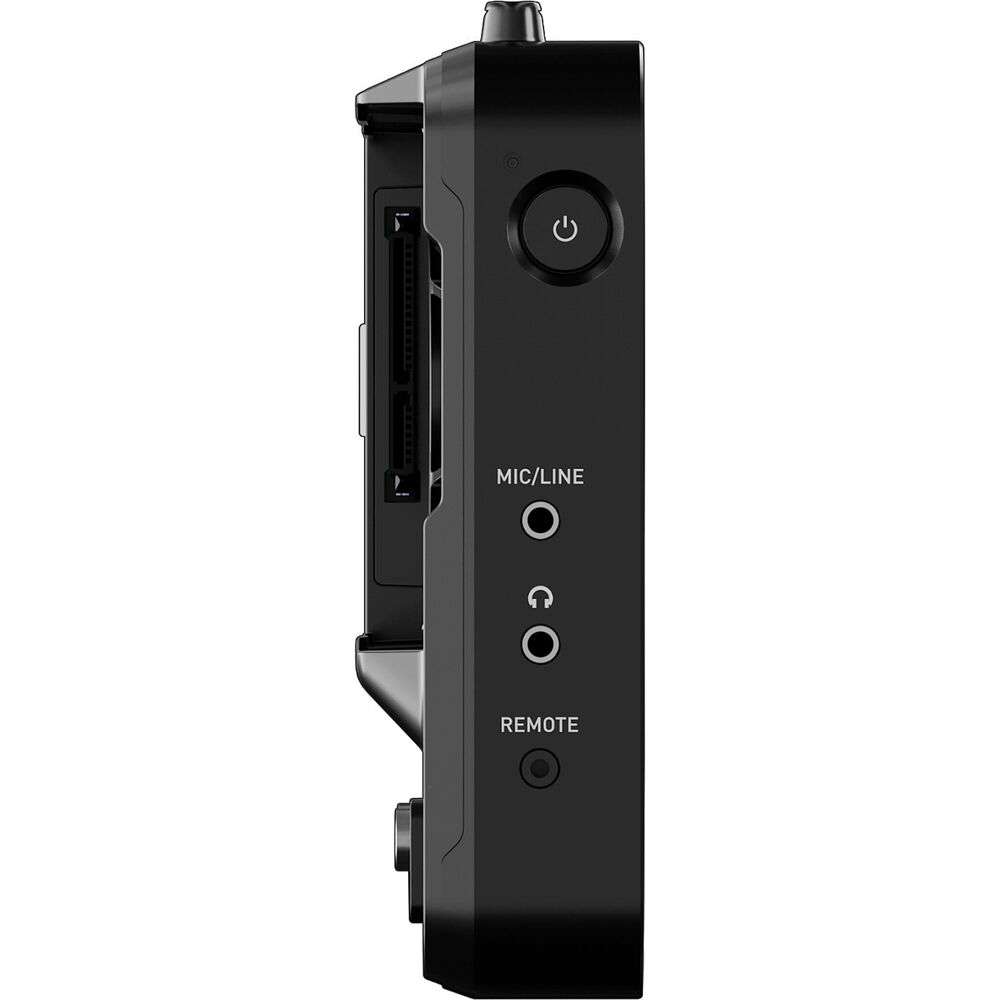

Audio Input & Output

1x 1/8" / 3.5 mm Headphone Output
1x 1/8" / 3.5 mm Input
1x 1/8" / 3.5 mm Output

Embedded Audio

HDMI: 8-Channel
SDI: 24-Channel

Video Format

HDMI/SDI (8/10-Bit 4:2:2/4:2:0 YCC)
8K Raw: 30
6K Raw: 60/30
4K Raw: 120
DCI 4K: 60
UHD 4K: 60
DCI 2K: 60
1080p: 120
1080i: 60/50
720p: 60

Mount

3x 1/4"-20 Female
3x 3/8"-16 Female

Media Slot

Single Slot: SSDmini/SSD with Master Caddy II/III

Battery Type

1x L-Series
No

Power Input & Output

1x Barrel Input

Other Input & Output

1x 2.5 mm (LANC)
1x USB-C (Serial) Input
1x RJ45 (Gigabit Ethernet) Input

Wi-Fi Compatibility

Wi-Fi 6E (802.11ax); Dual-Band (2.4 & 5 GHz)

Bluetooth Compatibility

Yes

Material

Aluminum, Polycarbonate

Input Power

6.2 - 16.8 VDC

Dimensions

7.8 x 5.2 x 1.6" / 198 x 133 x 40 mm

Weight

1.61 lb / 730.00 g

Categories

Monitors > Recording Monitors
