Broadcast Camera Operator (Gimbal-Based)

Leonardo Brambilla

Member • 2 weeks ago (edited)

Broadcast Camera Operator (Gimbal-Based)

$9,756.58

22 products

Bodies

Sony FX3 Full-Frame Cinema Camera

$4,298.00 • 10.2 MP • 35.6 x 23.8 mm Full-Frame CMOS • Sony E

Lenses

Sony FE 24-70mm f/2.8 GM Lens

$1,798.00 • Sony E • 24 - 70 mm • f/2.8

Storage

2x Sony 160GB CFexpress Type A TOUGH Memory Card

$796.00 • 160 GB • CFexpress Type A • 700 MB/s

Batteries

BLUESHAPE GRANITE SMART Battery with Bluetooth Monitoring (145Wh, B-Mount)

$605.00 • 28.8 VDC • 5000 mAh / 145 Wh

SWIT Dual-Side NP-F Dummy Battery with USB-C

$48.00

SmallRig D-Tap to Sony NP-FZ100 Dummy Battery Power Cable

$39.99

Hedbox Hedbox UNIX II Aluminum Power V-Lock Plate

$59.99

ZGCINE MD-P4 Male D-Tap to 4-Port Female D-Tap Splitter Adapter (23.6")

$20.00

Monitors

Atomos Ninja 5.2" 4K HDMI Recording Monitor

$649.00 • 1000 nits • 1920 x 1080 • 1x HDMI 2.0 Input, 1x HDMI 2.0 Output

2x BLACKHAWK Coiled HDMI Cable (12-24", Red)

$29.98

Lighting

2x Falcam F22 Dual-Head Quick Release Magic Arm Kit

$111.84

Supports

SmallRig HawkLock Quick Release Cage Kit for Sony FX3 and FX30

$99.99 • Sony FX3, Sony FX30 • 1/4"-20 Female Thread, 3/8"-16 Female Thread, Built-In Arca-Type Plate • 1x Cold Shoe (top)

2x Falcam F22 Five-Position Quick Release Plate

$33.80 • 2x 1/4"-20 Screw

DJI RS 3 Pro Gimbal Stabilizer

$739.00 • 12 hr • 9.9 lb

SmallRig Wireless Control Dual Handgrip for DJI RS 2/RS 3 Pro

$199.99

DJI Ronin BG30 Grip for RS 2 & RS 3 Pro Gimbals

$99.00

Hollyland Mars 400S PRO SDI/HDMI Wireless Video Receiver

$119.00

Misc.

Aputure D-Tap to 5.5mm DC Barrel Power Cable

$10.00

This setup is designed for productions that require a live video signal sent to a control room or video switcher.

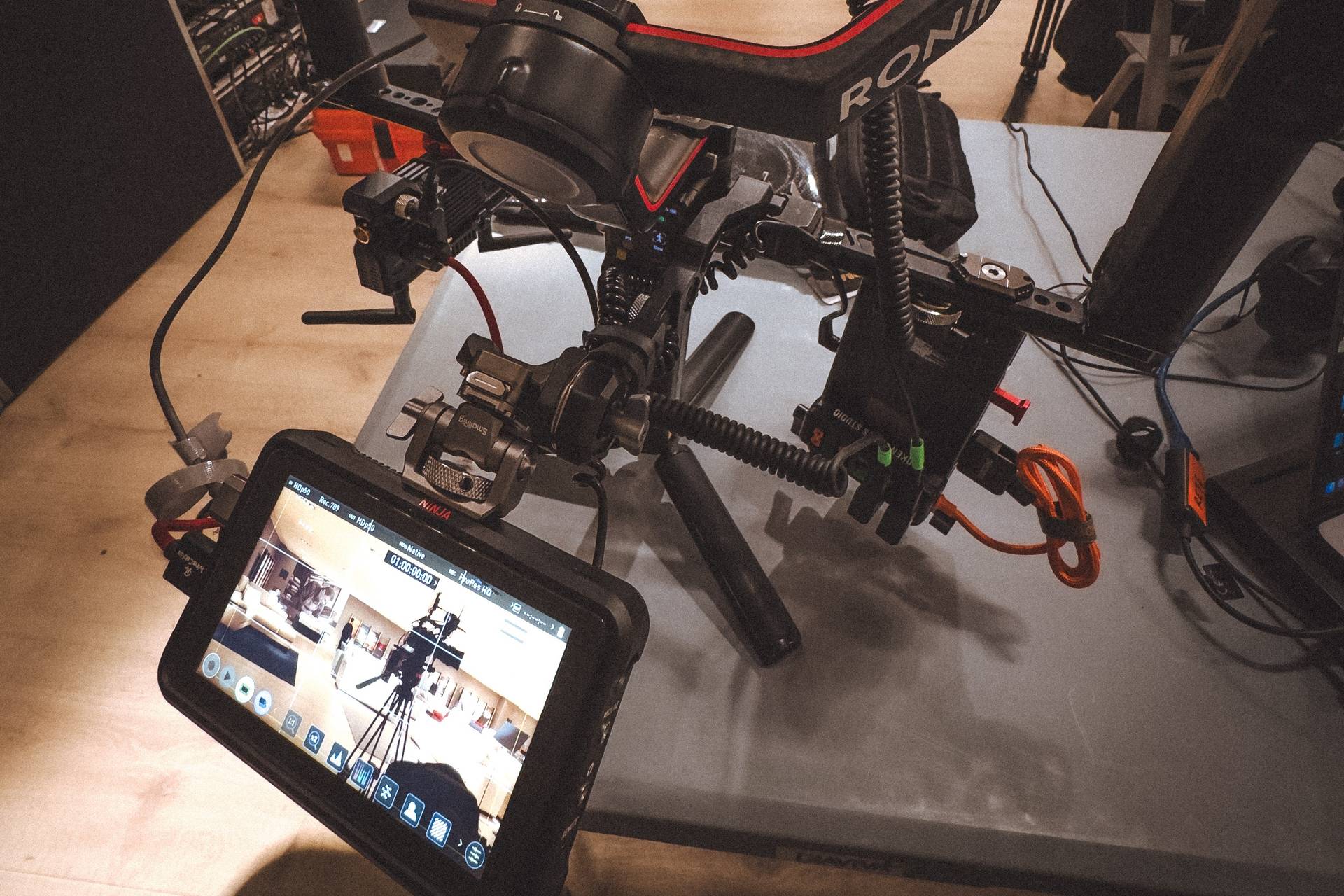

Despite its complexity, the configuration remains compact: all components are evenly mounted on the gimbal’s side arms to maintain proper weight balance.

It allows for real-time signal transmission, sending the feed from the camera to the onboard monitor, which loops the signal to the wireless transmitter (MARS) and then directly to the control room.

Due to its overall weight, this setup is not intended for continuous use, but it is well suited for small-scale productions and specific live scenarios.
