FX 30 Broadcast Rig - Run and Gun style

B

Member • 6 hours ago

FX 30 Broadcast Rig - Run and Gun style

$8,386.66

13 products

Bodies

Sony FX30 Digital Cinema Camera

$2,098.0026 MP • 23.3 x 15.5 mm APS-C CMOS • Sony E

Amazon

Lenses

Sony E PZ 18-105mm f/4 G OSS Lens

$748.00Sony E • 18 - 105 mm • f/4

Amazon

Sigma 18-35mm f/1.8 DC HSM Art Lens for Canon EF

$899.00Canon EF • 18 - 35 mm • f/1.8

Sigma MC-11 Mount Converter/Lens Adapter (Sigma EF-Mount Lenses to Sony E)

$269.00Canon EF • Sony E

B&H

Tilta Mirage Matte Box

$102.00

Amazon

Batteries

SmallRig VB155 Mini V-Mount Battery

$254.98V-Mount • 14.54 VDC • 10200 mAh / 148.3 Wh

Amazon

Neewer L-Series NP-F970 6600mAh Battery

$20.69Sony L-Series • 7.4 VDC • 6600 mAh / 48.8 Wh

B&H

Audio

DJI Mic 2 2-Person Compact Digital Wireless Microphone System/Recorder for Camera & Smartphone (2.4 GHz)

$219.00Omnidirectional • Battery • 1x 1/8" / 3.5 mm TRS Female Unbalanced Output, 1x 1/8" / 3.5 mm TRS Female Unbalanced Headphone Output

Amazon

Monitors

Atomos Shinobi SDI 5"

$600.00

Supports

SmallRig Camera Cage for Sony FX30 and FX3

$71.99Sony FX3, Sony FX30 • 1/4"-20 Female Thread, 3/8"-16 Female Thread, Built-In Arca-Type Plate • 1x Cold Shoe (top)

Amazon

Misc.

Live U Solo - Pro - SDI

$2,590.00

LU800 BACKPACK

$325.00

Blackmagic Design Micro Converter BiDirectional SDI/HDMI

$189.00

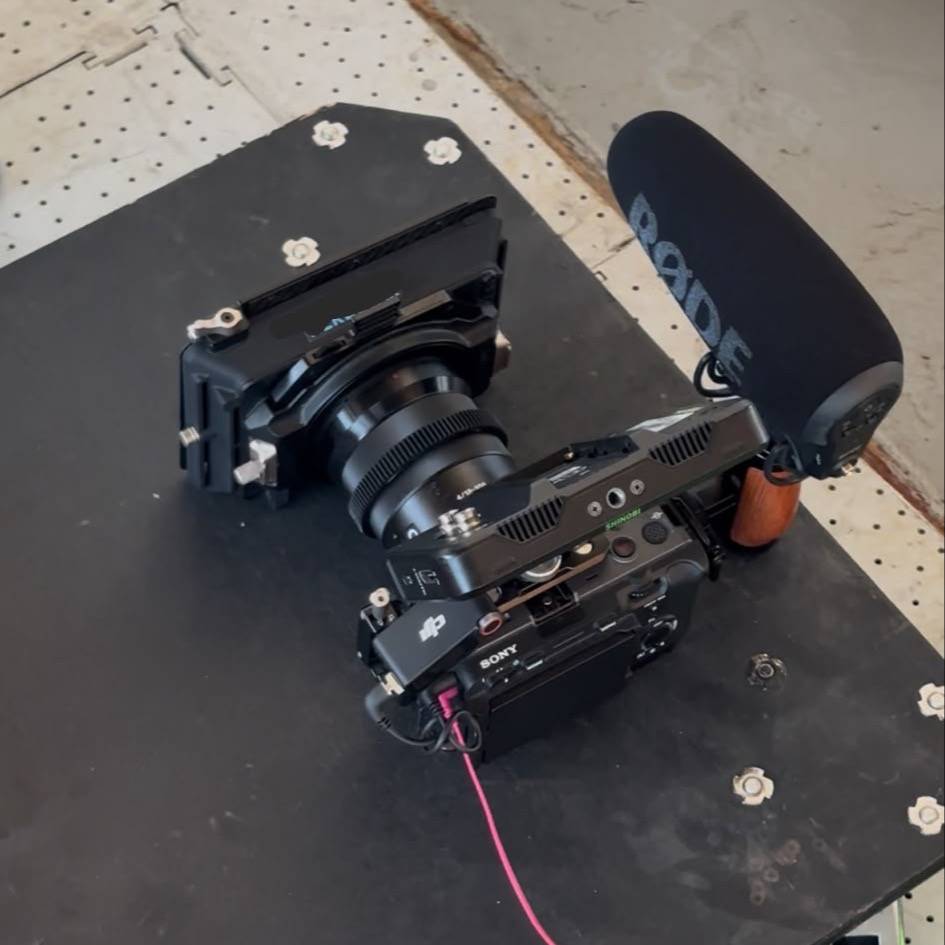

Pretty lightweight rig for Broadcast/Live - Production with the Fx3/30
The monitor runs of NPF, the Rest of the setup gets it's power from the V-Mount.

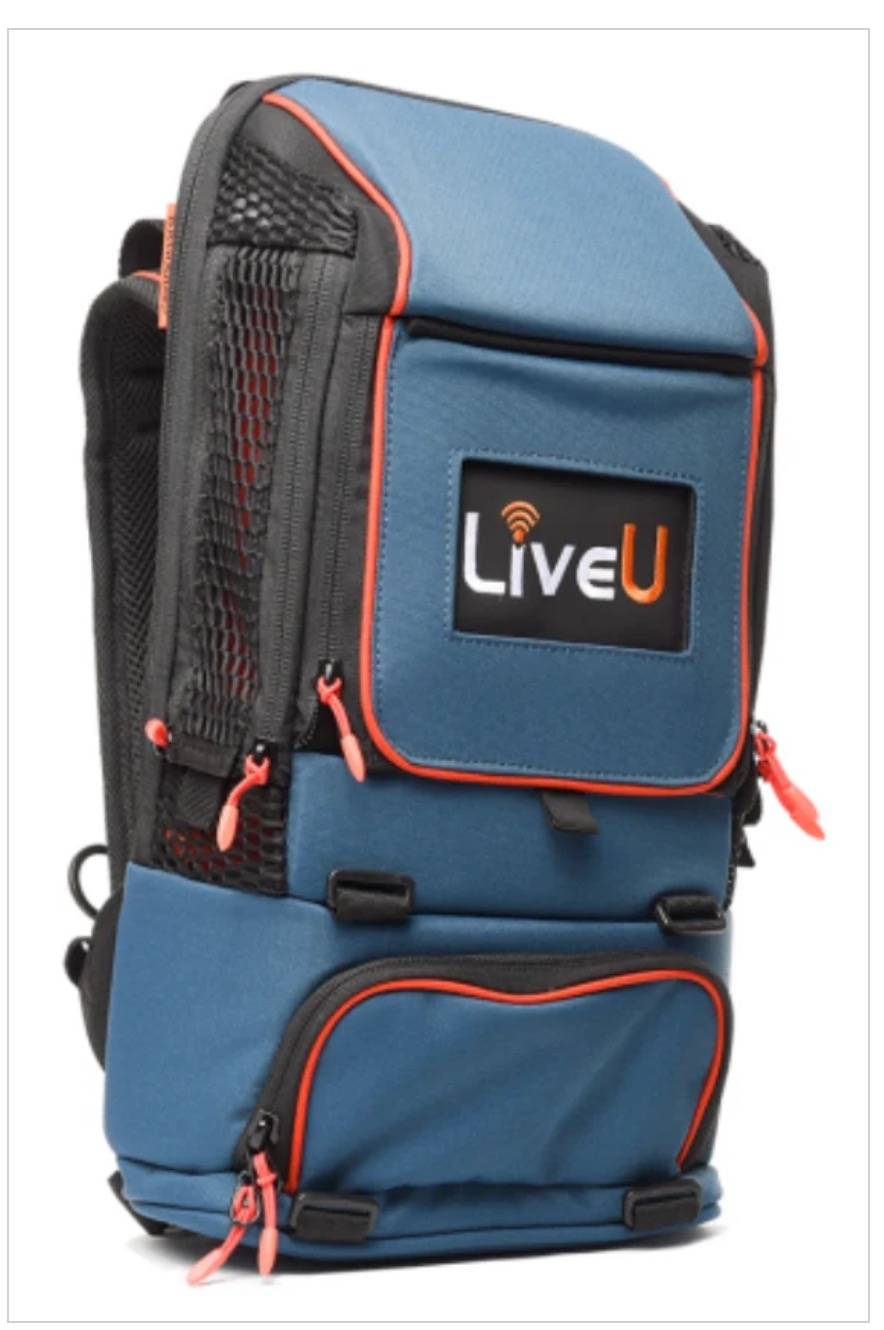

If you use the Live-U backpack that comes with the bigger Live-U (LU 800 - backpack) units you can fit the V-Mount beneath the Live-U, it is still accessible from the Bottom part of the Backpack, for swapping the Battery.

The Signal (HDMI) is fed from the Camera, to the Bi-Directional Converter (through the Opening of the Backpack). The SDI runs in the Live-U, while the HDMI Loop goes back to the Monitor.
The Bi-Directional Converter get's its power from the usb-c of the V-Mount, aswell as the Fx30 through PD.

If you us the Live-U Backpack, swell something for the kable management, its pretty secure still very versatile and light in the Hand setup.

Sadly I don't have any better pictures :(
