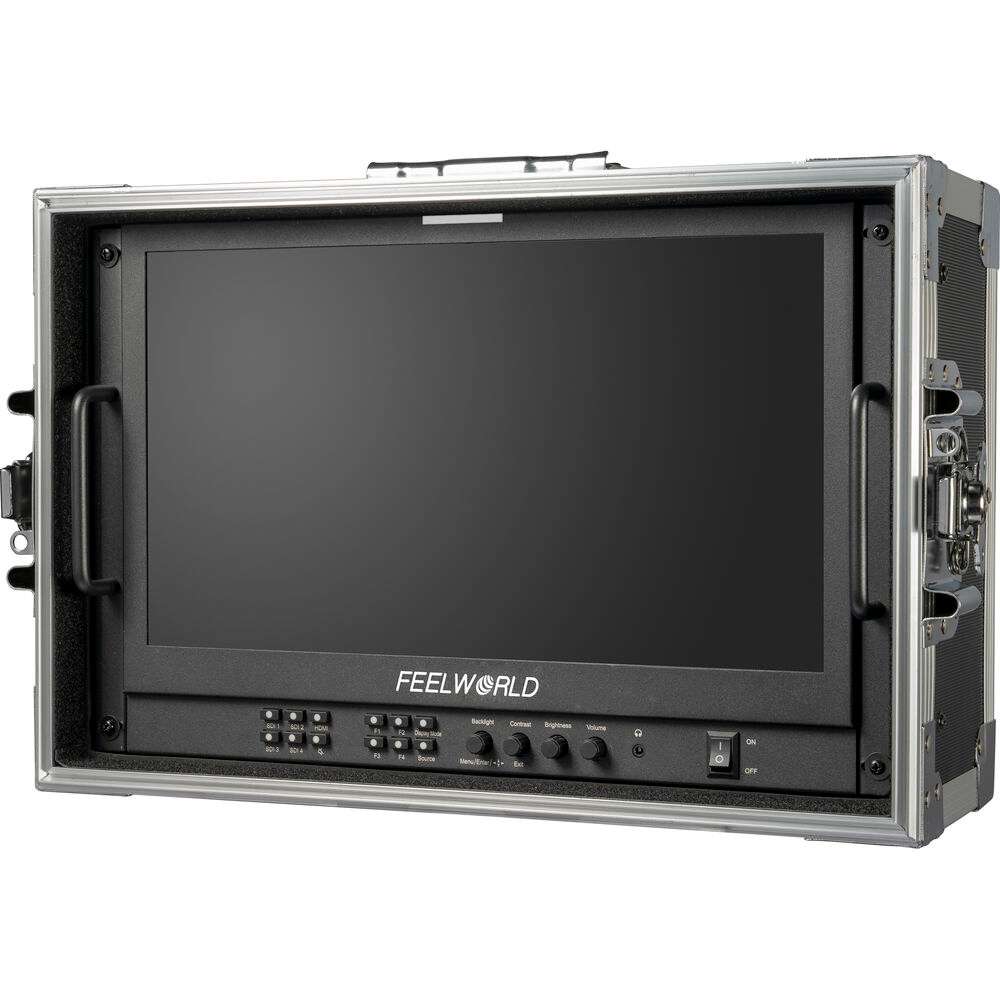

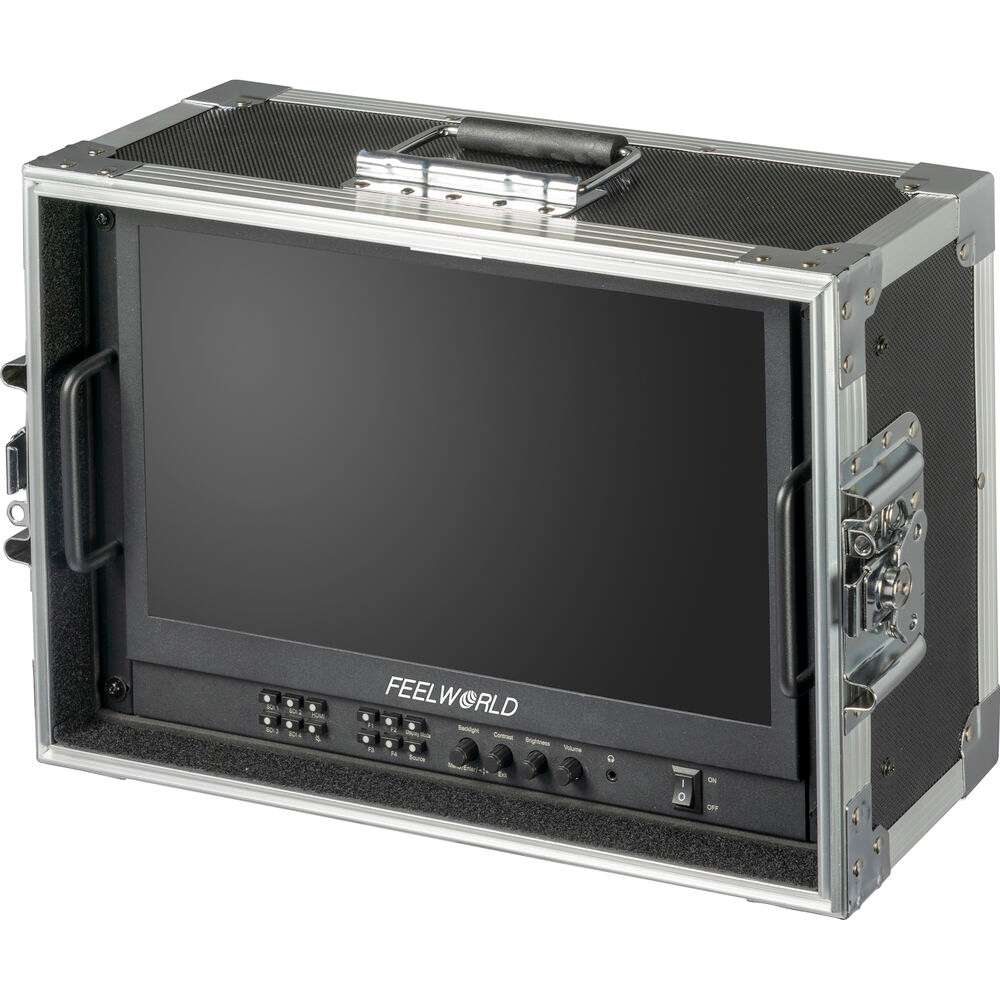

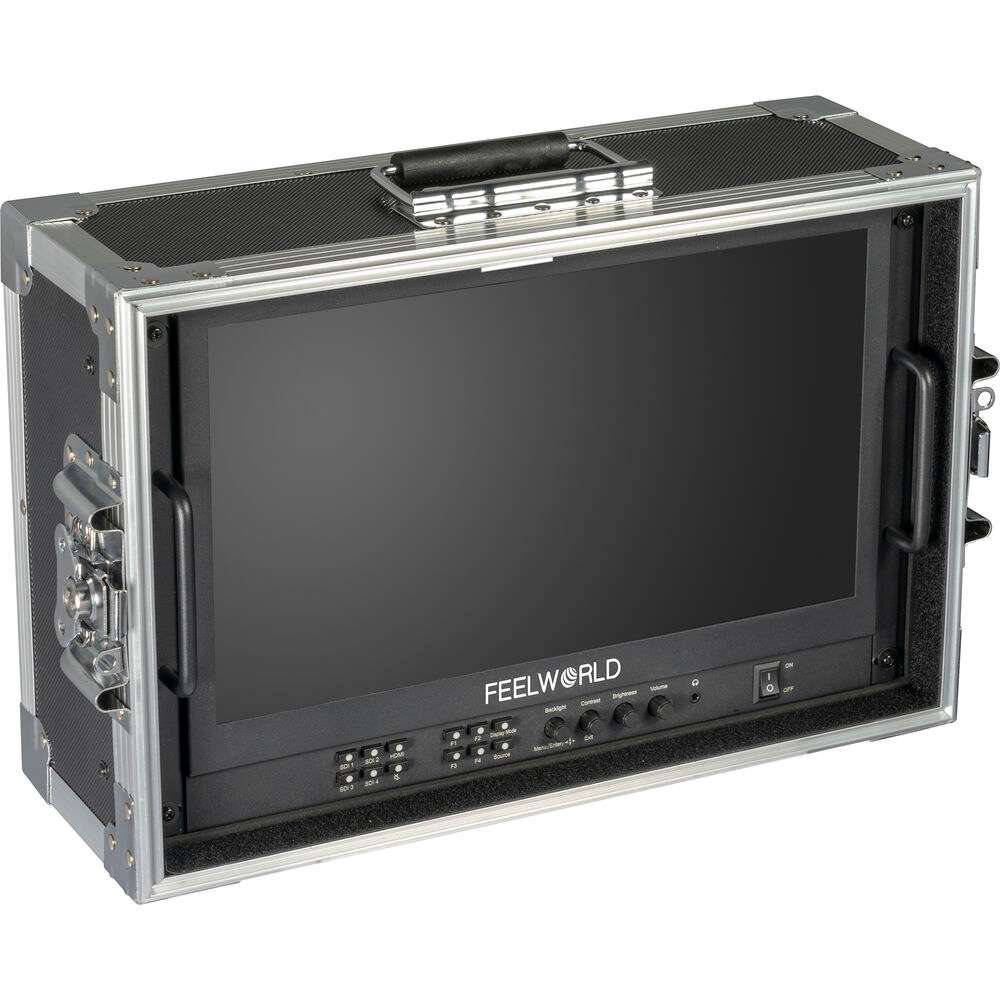

FeelWorld 15.6" Multicamera Broadcast Director Monitor (Carry-On)

Pixels Per Inch

141 ppi

Image Control

Anamorphic De-Squeeze, Blue Only, Check Field, False Color, Focus Assist, Focus Peaking, Green Only, Image Rotate, Red Only, Screen Markers, Screen Split - Half, Screen Split - Quarter

Audio Input & Output

1x 1/8" / 3.5 mm Headphone Output

Embedded Audio

HDMI/SDI

Video Format

SDI
DCI 2K: 60/59.94/50/30/29.97/25/24/23.98
DCI 2Ki: 60/59.94/50
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
1080PsF: 24/23.98
720p: 60/59.94/50/30/29.97/25/24/23.98
576p
480p
HDMI
1080p: 60/59.94/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576p
576i
480p
480i

Media Slot

No

Battery Type

1x V-Mount

Power Input & Output

1x Barrel (12 VDC) Input

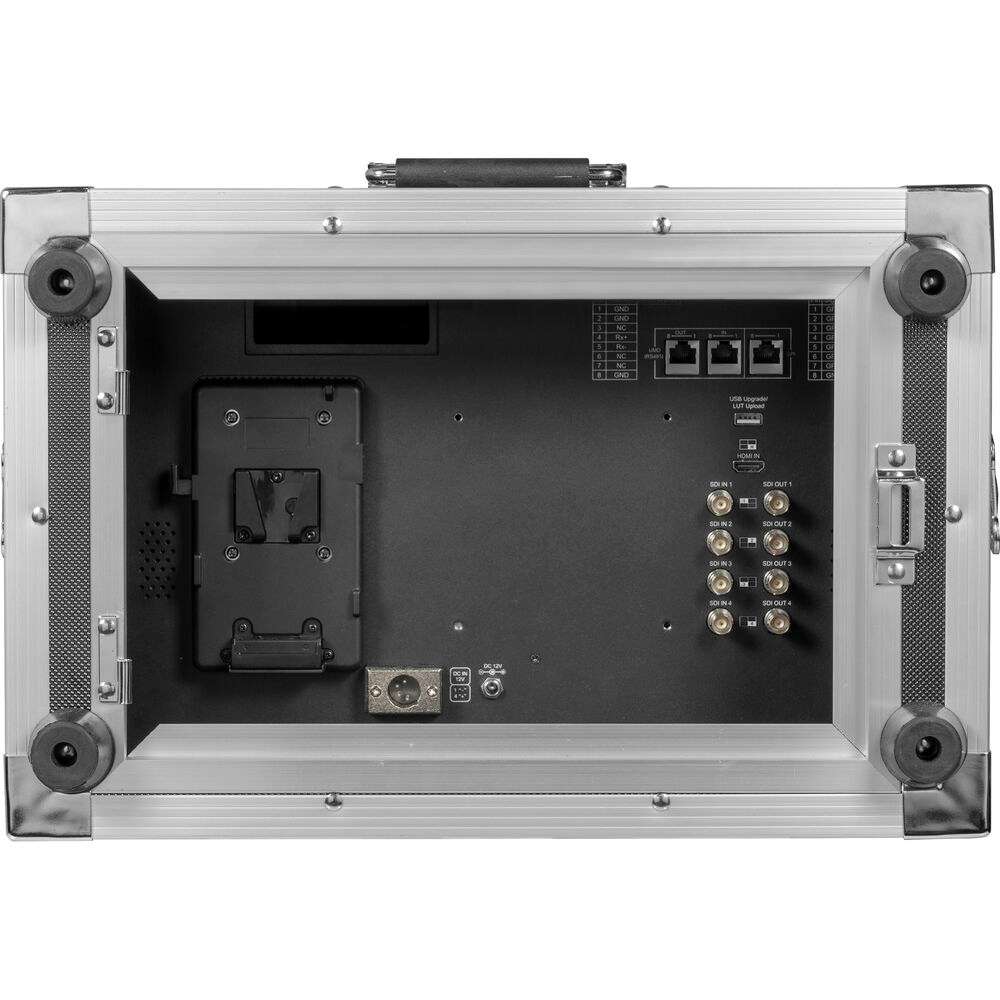

Other Input & Output

1x USB-A 2.0 Input
1x RJ45 (GPI) Input
1x RJ45 (RS-485) Input
1x RJ45 (RS-485) Output

Wi-Fi Compatibility

No

Bluetooth Compatibility

No

Input Power

12 VDC

Dimensions

14.6 x 10.3 x 1.1" / 372 x 262 x 28.4 mm (Excluding Case, Stand)

Weight

3.46 lb / 1.57 kg, Excluding Case
